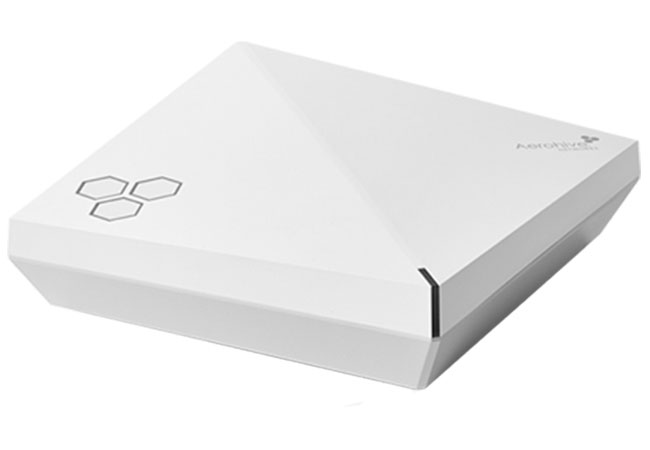

Aerohive AP250

Aerohive AP250

Wifi Aerohive AP250 Indoor plenum rated Access Point, 2 radio 3×3:3 802.11a/b/g/n/ac Wave 2 MU-MIMO, 2x 10/100/1000 Ethernet ports, without power supply (Internal Antenna only). Includes HiveManager Connect & HiveCare Community

Danh mục:

Mô tả

Thiết bị phát sóng Wifi Indoor Aerohive AP250

Product NameAerohive AP250
Radio Specifications802.11a
• 5.150–5.850 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11b
• 2.4–2.5 GHz Operating Frequency
• Direct-Sequence Spread-Spectrum (DSSS) Modulation
• Rates (Mbps): 11, 5.5, 2, 1 w/auto fallback 802.11g
• 2.4–2.5 GHz Operating Frequency
• Orthogonal Frequency Division Multiplexing (OFDM) Modulation • 20 dBm (100 mW) Transmit Power
• Rates (Mbps): 54, 48, 36, 24, 18, 12, 9, 6 w/ auto fallback
802.11n
• 2.4–2.5 GHz & 5.150–5.850 GHz Operating Frequency
• 802.11n Modulation
• Rates (Mbps): MCS0–MCS23 (6.5Mbps – 450Mbps)
• 3×3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
• HT20 High-Throughput (HT) Support for both 2.4 GHz and 5 GHz
• A-MPDU and A-MSDU Frame Aggregation
802.11ac
• 5.150–5.850 GHz Operating Frequency
• 802.11ac Modulation (256-QAM)
• Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1300Mbps), NSS = 1-3.
• 3×3:3 Stream Multiple-In, Multiple-Out (MIMO) Radio
• VHT20/VHT40/VHT80 support
Interfaces• Two Autosensing 10/100/1000 BASE-T Ethernet ports. PoE/ PoE+ capability on one of the ports
• RJ-45 console port
• Standard USB port




Power Specificatons

• IEEE 802.3af PoE Power: Full 3×3:3 802.11ac MU-MIMO performance, BLE and Dual 5 GHz. No USB port, no 2nd Ethernet port.
• IEEE 802.3at PoE Power: full set of features (all of the above plus USB port and 2nd Ethernet port).
• 2.4 GHz typical power draw: 17 dBm, max 20 dBm
• 5 GHz typical power draw: 18 dBm, max 19 dBm
Physical• WxDxH: 7.25” x 7.25” x 1.87”(18.4 cm x 18.4 cm x 1.87cm) [plus .25”, mounting hardware – 2.12” (5.4 cm) H total ]
• Weight: 1.8 lb ( 0.81 kg)
Antennas• 6 + 2 internal Wi-Fi antennas for spatial and polarization diversity
• 1x BLE internal antenna


Mounting

• Desktop
• Ceiling Tile Recessed 15/16”, 3/8”, 9/16” sold as an accessory
• Ceiling Tile flush 3/8”, 9/16” sold as an accessory
• Suspend Mount sold as an accessory
• Plenum Mount sold as an accessory
• Silhouette and Interlude sold as an accessory
• TPM chip for added security
Environmental• Operating: 0 to +40°C, Storage: -40 to +70°C
• Humidity: 95%
Environmental Compliance• UL2043
