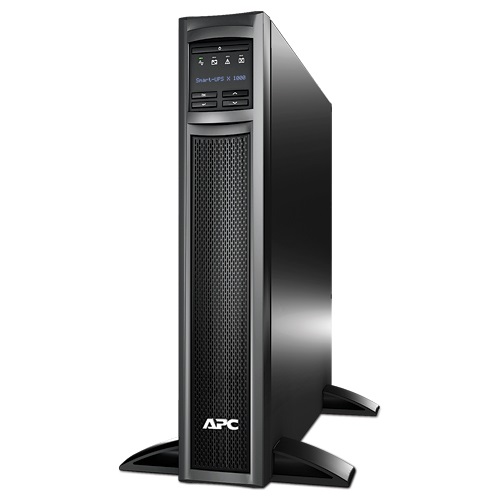

Bộ lưu điện UPS APC SMX1000I 1000VA

Bộ lưu điện UPS APC SMX1000I 1000VA

Bộ lưu điện UPS APC Smart-UPS X 1000VA Rack/Tower LCD 230V. APC Smart-UPS On-Line, 800 Watts / 1000 VA, Input 230V / Output 230V, Interface Port , SmartSlot, Extended runtime model.

Danh mục:

Mô tả

Bộ lưu điện UPS APC SMX1000I (1000VA-800W)

Thông số sản phẩmSMX1000I
Ngõ Ra
Output power capacity800Watts/1.0 kVA
Max Configurable Power (Watts)800Watts / 1.0 kVA
Nominal Output Voltage230V
Output Voltage DistortionLess than 5%
Output Frequency (sync to mains)50/60Hz +/- 3 Hz
TopologyLine Interactive
Waveform typeSine wave
Output Connections(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Ngõ Vào
Nominal Input Voltage230V
Input frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionsIEC-320 C14
Cord Length1.83meters
Input voltage range for main operations160 – 286V
Input voltage adjustable range for mains operation151 – 302V
Number of Power Cords1
ẮC QUY VÀ THỜI GIAN HOẠT ĐỘNG
Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time3hour(s)
Replacement BatteryAPCRBC116
Expected Battery Life (years)3 – 5
RBC Quantity1
DC Overcurrent Protection299
GIAO TIẾP VÀ QUẢN LÝ
Interface Port(s)SmartSlot, USB
Control panelMulti-function LCD status and control console
Audible AlarmAlarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Emergency Power Off (EPO)Yes
Available SmartSlot™ Interface Quantity1
Rack Height2U
Dimension89 x 432 x 490mm
Weight22.86kg
