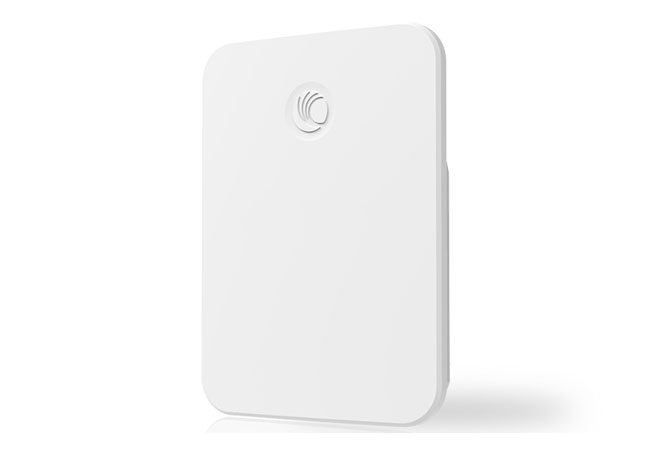

Cambium E510

Cambium E510

Thiết bị Wifi Cambium E510: Outdoor Omni, Gigabit IP67 802.11ac wave 2 Outdoor Access Point, Public Wi-Fi, Hospitality, Education campus, Industrial and Enterprise.
Danh mục:

Mô tả

Thiết bị Wifi Cambium E510

Product namecnPilot e510
Designed ForPublic Wi-Fi, Hospitality, Education campus, Industrial and Enterprise
Concurrent Clients256
Access Point Specifications
StandardsIEEE 802.11a/b/g/n/ac Wave2
IEEE 802.11d/e/h/i/k/r/u/v/w
2×2:2:2, MIMO, MU-MIMO
Transmit Beam steering
Max Phy Rates2.4GHz : 400Mbps
5GHz : 867Mbps
SSID16 SSIDs
AntennaIntegrated dual polarized, Omni direction
8dBi (2.4GHz) – 9dBi (5GHz)
Ethernet Interfaces1x auto-sensing Gigabit Ethernet
Power Supply802.3af or 802.3at Powered Device
Max 12.95w (802.3af)
Dimensions320mm x 215mm x 65mm
LTE FilterLTE bands 38, 40
WLAN AND NETWORK SPECIFICATIONS
Controller ModesController-less standalone
AutoPilot heterogeneous network
Cloud managed cnMaestro
On-premises cnMaestro VM
WLAN256 clients
16 SSIDs
WPA-TKIP, WPA2 AES, 802.1x
802.11w PMF
WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
 Captive Portal/Guest Access
Accounting
Scheduled WLAN
Data Limit
Fast Roaming
Mesh
NetworkNAT
NAT logging firewall
DHCP server L2, L3 or DNS based access control VLAN Pooling
RADIUS attribute VID VLAN per SSID per user
Band Steer Load Balance
TunnelL2TP, L2oGRE, PPPoE
Client Isolation
