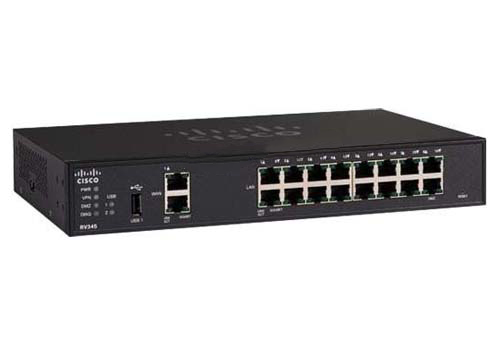

Cisco RV345-K9-G5

Cisco RV345-K9-G5

Cisco RV345-K9-G5 Cisco RV345 Dual WAN Gigabit VPN Router Ethernet WAN 2 RJ-45 Gigabit Ethernet Ethernet LAN 16 RJ-45 Gigabit Ethernet Console 1 RJ-45 for future use USB 2 for external 3G/4G dongle or flash drive

Danh mục:

Mô tả

Thiết bị mạng Cisco RV345-K9-G5

Ports
Ethernet WAN 2 RJ-45 Gigabit Ethernet
Ethernet LAN 16 RJ-45 Gigabit Ethernet
Console 1 RJ-45 for future use
USB 2 for external 3G/4G dongle or flash drive
Security
Firewall Stateful packet inspection, 900-Mbps throughput for TCP, User Datagram Protocol (UDP) traffic
Web security and app visibility (licensed feature) Dynamic web filtering: Cloud based, more than 80 categories, more than 450 million domains classified
Application identification: Assign policies to Internet applications
Endpoint identification: Assign policies based on end device category and operating system
VPN
IP Security (IPsec) Yes (50 connections, 650 Mbps throughput)
IPsec site-to-site Preconfigured profiles for Amazon Virtual Cloud and Microsoft Azure
Layer 2 Tunneling Protocol (L2TP) (over IPsec) Remote access via L2TP (over IPsec for MS Windows)
IPsec remote access Remote access from standard IPsec client and Cisco IPsec VPN (for example, Mac OS, Apple iOS clients)
Cisco SSL VPN (Cisco AnyConnect) Ideal for mobile devices. Remote access from Cisco AnyConnect Secure Mobility Client. Max 50 connections (2 sessions included, can be upgraded to 50 sessions). Cisco AnyConnect client sold separately
Generic routing encapsulation (GRE) over Yes
Point-to-Point Tunneling Protocol (PPTP) Yes (25 connections, 100-Mbps throughput)
VPN pass-through IPsec, PPTP, L2TP
Management
Management protocols Web browser (HTTP/HTTPS)
Simple Network Management Protocol (SNMP) v1, v2c, and v3
LAN
VLAN Yes (32)
Port security Yes, 802.1X
Quality of service (QoS) Yes
WAN Dynamic Host Configuration Protocol (DHCP) client, static IP, Point-to-Point Protocol over
Routing Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng)
Inter-VLAN routing
Static routing, IGMP proxy
Network Address Translation (NAT) Port forwarding
Port Address Translation (PAT)
One-to-one NAT
VPN NAT traversal
Session Initiation Protocol (SIP) Application Level Gateway (ALG), FTP ALG
DMZ host Yes
System memory Flash 256 MB; RAM 1 GB
Power supply AC: 100-240V/1   ADC: 12V/2.5A
AC: 100-240V/ 2A   DC: 54V/2.78A
