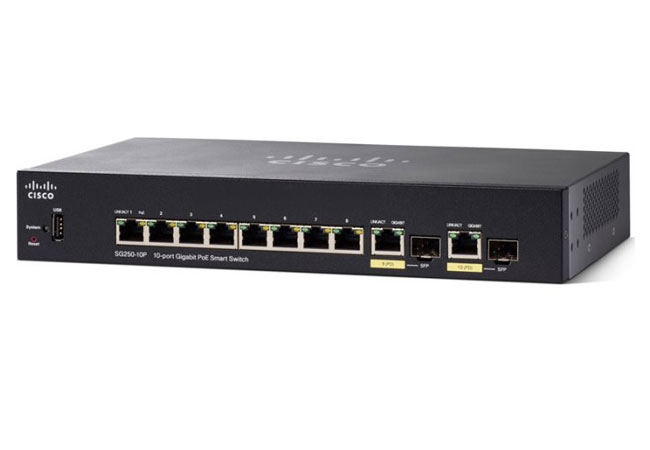

Cisco SG250-10P-K9-EU

Cisco SG250-10P-K9-EU

SG250-10P-K9-EU Cisco SG250-10P 10-port Gigabit PoE Switch. ● 8 10/100/1000 PoE+ ports with 62W power budget ● 2 Gigabit copper/SFP combo ports with 60W PoE powered device support

Danh mục:

Mô tả

Thiết bị mạng Switch Cisco SG250-10P-K9-EU

Part Name SG250-10P-K9
Device type Switch, 1 G, 10 ports
Enclosure type Compact, 1 unit
Ports 8 x 10/100/1000, 2 x Gigabit SFP/RJ-45
Power over Ethernet (PoE) PoE+ (8 ports, 62W)
Performance 20-Gbps switching capacity, 14.88-Mpps forwarding performance (64-byte packet size)
MAC address table size 8k entries
Capacity 256 active VLANs
Jumbo frame Yes
Remote management protocol SNMP, RMON,  HTTP, HTTPS, TFTP, Telnet, SSH
Features Layer 2 switching, Layer 3 switching, DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree (MSTP), Trivial File Transfer Protocol (TFTP) support, access control list (ACL) support, quality of service (QoS), jumbo frames support, MLD snooping, SNMP, RMON, SNTP, Cisco Discovery Protocol, Auto SmartPorts
Compliant standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af PoE, IEEE 802.3at PoE, IEEE 802.3az
RAM 512 MB
Flash memory 256 MB flash
Status indicators System, link/speed per port
Expansion / Connectivity
Interfaces 8 x 10BASE-T/100BASE-TX/1000BASE-T, RJ-45 (PoE+), 2 x Gigabit SFP/RJ-45 (60W PoE PD)
Power
Power device Power supply, external
Voltage required AC 120/230V (50/60 Hz)
Miscellaneous
Width 11.0 in (280 mm)
Depth 6.69 in (170 mm)
Height 1.45 in (44 mm)
Weight 2.65 lb (1.2 kg)
Mounting kit Included
MTBF 205,647 hours
Compliant standards UL 60950, FCC Part 15 A, CSA 22.2
Manufacturer Warranty
Service and support Limited lifetime warranty
Service and support details Limited warranty: lifetime; technical support (Web): 1 year; technical support (phone consulting): 1 year
Environmental Parameters
Minimum operating temperature 32°F (0°C)
Maximum operating temperature 122°F (50°C)
Humidity range operating 10-90% (noncondensing)
Minimum storage temperature -4°F (-20°C)
Maximum storage temperature 158°F (70°C)
Humidity range storage 10-90% (noncondensing)
