DKVM-450

DKVM-450

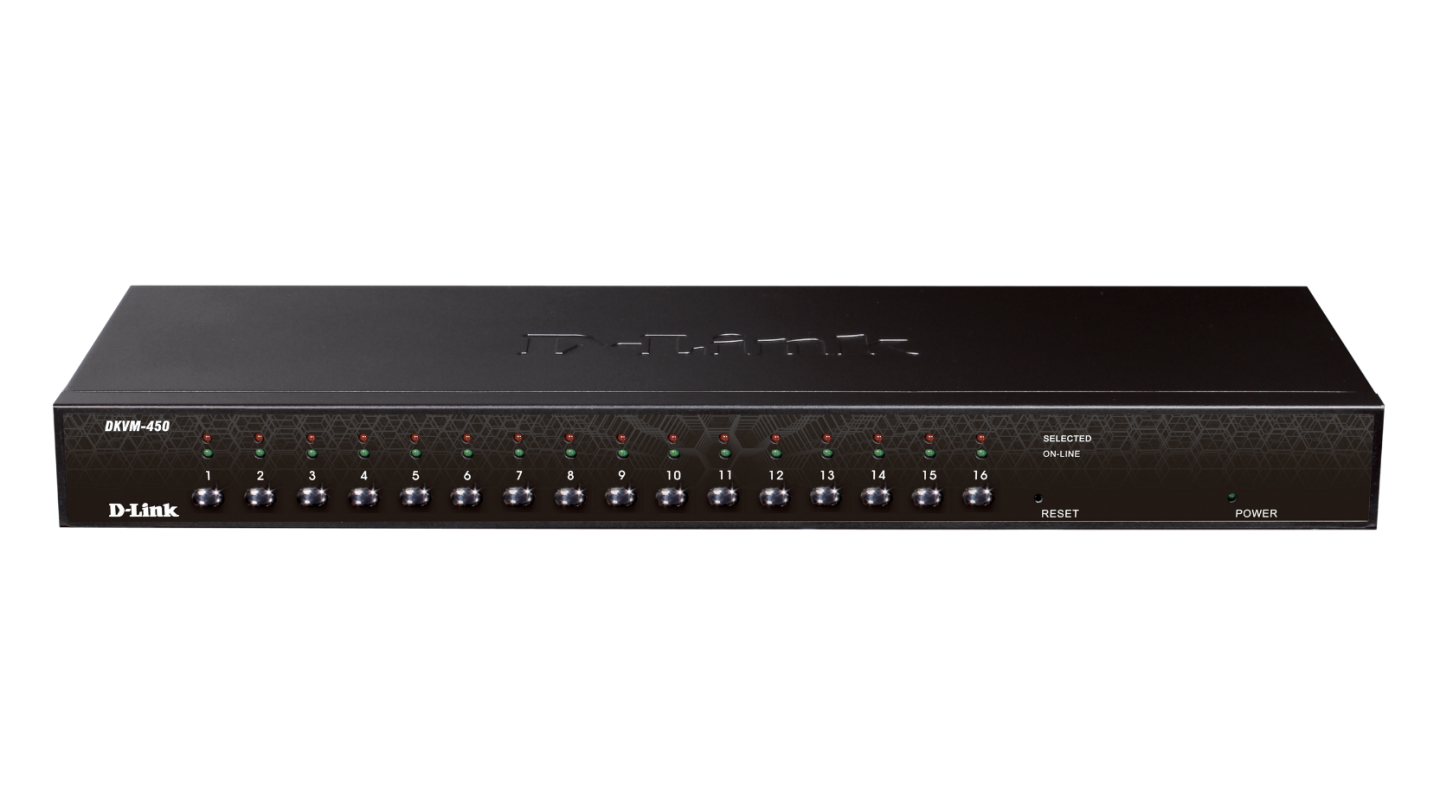

Dlink DKVM-450: PS2/USB 16 Port Combo KVM Switch (8 sợi cable)

Danh mục:

Mô tả

Thiết bị mạng Dlink DKVM-450:

Computer Connections
Single KVM: 16
Cascade Chaining: Up to 4096
Selection MethodSwitch Button, Hot-Keys (PS/2 Keyboard), and On-Screen-Display (OSD)
LEDsRed for PC Selected
Green for PC On-Line/Ready
PC Connectors16 x HDB-15 female
Support both PS/2 and USB platform servers
Console PortsKeyboard: 1 x 6 pin mini-DIN female
Mouse: 1 x 6 pin mini-DIN female
Video: 1 x HDB-15 female
Firmware Upgrade PortMini USB
Auto-Scan Interval5 – 90 seconds
Video ResolutionMax. resolution up to 2048 x 1536 @ 65 Hz
Hot-swappableYes
Operating Systems SupportedWindows 98SE/ME/2000/2003/2008/XP/Vista/7, Linux, Mac OS 9/OS X and Sun Microsystems
Power5V, 2A
Housing MaterialMetal
Operating Temperature32°-122°F (0-50°C)
Humidity0%-80% Relative Humidity
CertificationsFCC, CE, C-Tick, IC, CSA
Dimensions (L x W x H)17.3 x 6.1 x 1.5 inches (44 x 15.7 x 4.5 cm)
Weight4.2 lbs (1900 g)
Warranty1 Year Limited2
Package Contents16-Port PS2/USB Combo KVM Switch (KVM-450)
4 sets of 6ft 4-in-1 PS2/USB KVM cable
Rack Mount Bracket Kit Set
Power Adapter
CD-ROM with Manual and Software
Quick Install Guide
