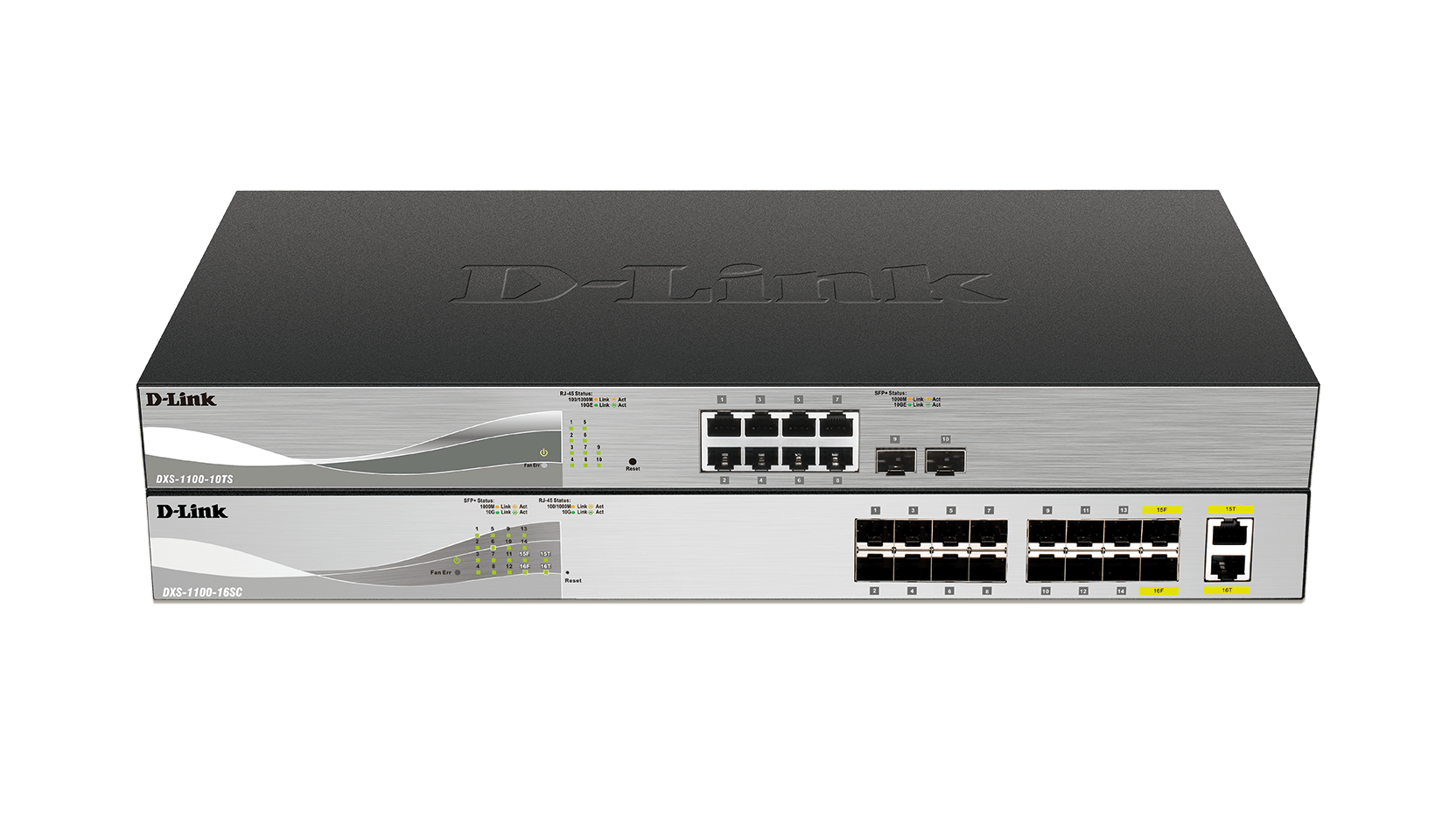

Dlink DXS-1100-10TS

Thiết bị mạng Switch Dlink DXS-1100-10TS

Interfaces	• Eight (8) 10GBASE-T ports
Interfaces	• Two (2) 10G SFP+ ports
Port Standard & Functions	• IEEE 802.3u 100BASE-TX Fast Ethernet
	• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	• IEEE 802.3az compliance
	• IEEE 802.3an 10GBASE-T 10GbE over copper
	• IEEE 802.3ae 10GbE over fiber
	• IEEE 802.3z 1000BASE-X
	• Auto MDI/MDIX support for 1000/10GBASE-T
Network Cables for 10GBASE-T	• CAT-6 (30m max)
Network Cables for 10GBASE-T	• CAT-6A or CAT-7(100m max)
Media Interface Exchange	• Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity	• 200 Gbps
Maximum Packet Forwarding Rate	• 148.801 Mpps
Transmission Method	• Store-and-forward
MAC Address Table	• 16K Entries
Packet Buffer:	• 2 MBytes
Flash Memory:	• 128 MBytes
Power Input	• AC input: 100 to 240VAC, 50/60 Hz
Power Consumption	• 50.9 W
