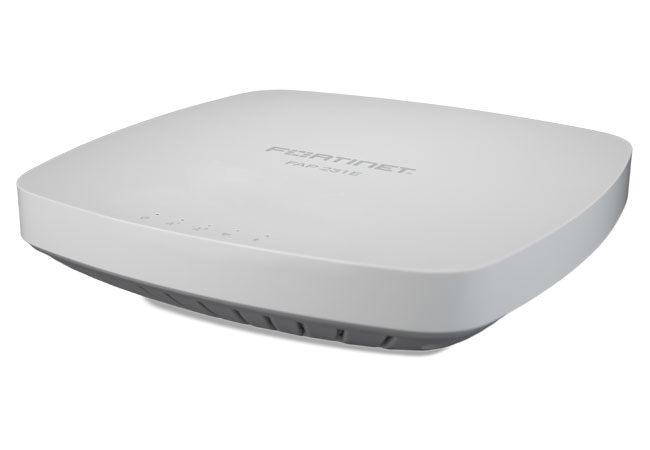

FortiAP 231E (FAP-231E)

FortiAP 231E (FAP-231E)

FortiNet FortiAP 231E (FAP-231E): Indoor Wireless AP – Tri-radio (802.11 a/b/g/n/ac Wave 2, 802.11a/n/ac Wave 2, 802.11 b/g/n, 2×2 MU-MIMO), internal antennas, 2 x 10/100/1000 RJ45 port, BT / BLE. Ceiling/wall mount kit included.For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP200-PA.

Danh mục:

Mô tả

Thiết bị mạng không dây Indoor Wireless Access Point FortiNet FortiAP 231E (FAP-231E)

Mã sản phẩmFAP-231E
Hardware
Hardware TypeIndoor AP
Number of Radios3 + 1 BLE
Number of Antennas6 Internal + 1 BLE internal
Antenna Type and peak GainPIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities2.4 GHz or 5.0 GHz (high band) a/b/g/n/ac W2 (2×2:2 stream) 20/40/80 MHz
Radio 2 Capabilities5.0 GHz a/n/ac W2 (2×2:2 stream) 20/40/80 MHz
Radio 3 Capabilities2.4/5.0 GHz dual band b/g/n (2×2:2 stream) 20/40 MHz
Maximum Data RateRadio 1: up to 867 Mbps
Radio 2: up to 867 Mbps
Radio 3: up to 400 Mbps
Bluetooth Low Energy RadioBluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces2x 10/100/1000 Base-T RJ45, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE)IEEE 802.3af or 802.3.at
Simultaneous SSIDsUp to 24 (21 if background scanning enabled)
EAP Type(s)EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device AuthenticationWPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP , Web Captive Portal , MAC blacklist & whitelist
Maximum Tx Power2.4 GHz: 24 dBm / 251 mW (2 chains combined)*
5 GHz: 25 dBm / 316 mW (2 chains combined)*
Kensington LockYes
IEEE Standards802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at
SSID Types SupportedLocal-Bridge, Mesh, & Tunnel
Per Radio Client CapacityUp to 512 for Radio 1 & 2, Up to 128 for Radio 3
Cellular Co-existence**Yes
LED Off ModeYes
Advanced 802.11 Features
802.11ac MU-MIMO Wave 2Yes
Transmit Beam Forming (TxBF)Yes
Low-Density Parity Check (LDPC) EncodingYes
Maximum Likelihood Demodulation (MLD)Yes
Maximum Ratio Combining (MRC)Yes
A-MPDU and A-MSDU Packet AggregationYes
MIMO Power SaveYes
Short Guard IntervalYes
OFDMANo
Wireless Monitoring Capabilities
Rogue Scan Radio ModesBackground, Dedicated
WIPS / WIDS Radio ModesBackground, Dedicated
Packet Sniffer ModeYes
Spectrum AnalyzerYes
Dimensions
Length x Width x Height7.87 x 7.87 x 1.81 inches (200 x 200 x 46 mm)
Weight1.2 lbs (0.55 kg)
Package (shipping) Weight2.5 lbs (1.15 kg)
Mounting OptionsCeiling, T-Rail, and Wall
Included AccessoriesMount kits for Ceiling, T-Rail, and Wall
Environment
Power SupplySP-FAP200-PA-XX, GPI-130
Power Consumption (Maximum)17 W with 802.3at PoE,12.9 W with 802.3af PoE- reduced TX power (13dBm per radio)
Humidity5–93% non-condensing
Operating / Storage Temperature32–104°F (0–40°C) / -31–158°F (-35–70°C)
DirectivesLow Voltage Directive • RoHS
UL2043 Plenum MaterialYes
Mean Time Between Failures>10 Years
IP Rating
Surge Protection Built In
Hit-less PoE FailoverNo
Certifications
WiFi Alliance CertifiedNo
DFSFCC, CE

License sử dụng cho FortiAP FAP-321E

SKUDescription
FC-10-P231E-247-02-DD24×7 FortiCare Contract
