Mô tả

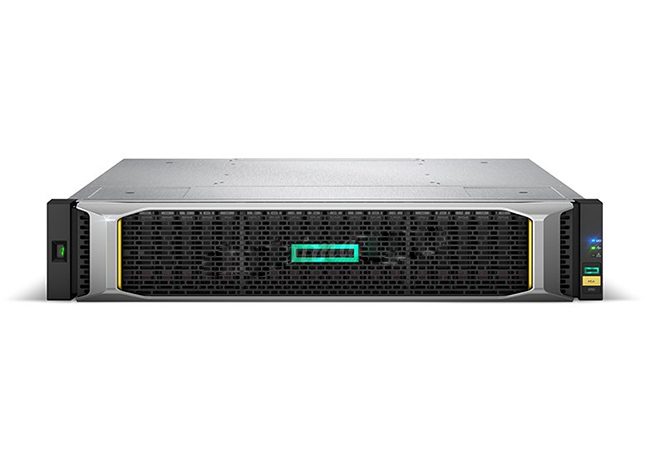

Thiết bị lưu trữ HPE MSA 2052 (Q1J30A)
HPE MSA 2052 Storage Specification | |
Array | |
Access Type | Block |
Form Factor | 2U, SFF or LFF |
Number of controllers per array | 2 |
Number of host ports per array | 8 |
FC host connectivity | 8/16Gb |
iSCSI host connectivity | 1Gb or 10GbI |
SAS host connectivity | 6/12Gb |
Cache, per array | |
Max Read cache per array | 8TB |
Data (read/write) cache + system memory per array | 16GB |
Pool Capacity (with Large Pool Support) | 562 TB (512 TiB) |
RAID Levels supported: Virtual mode | RAID 1, 5, 6, 10 |
Enclosures | |
Expansion Drive Enclosures | 0-7 enclosures |
LFF/SFF array/enclosure mixing | Supported |
Maximum number of drives per array enclosure | 24 SFF/12 LFF |
Maximum number of drives per drive enclosure | 24 SFF/12 LFF |
Drive enclosure interface type | 6Gb SAS |
Drives | |
Maximum total HDDs per array | 192 SFF / 96 LFF |
Maximum total SSDs per array | 192 SFF / 96 LFF |
Max raw capacity per array enclosure | 76.8 TB SFF / 144TB LFF |
Max raw capacity per drive enclosure | 76.8 TB SFF / 144TB LFF |
Max raw capacity per array | 614.4TB SFF / 1152TB LFF |
Integrated SSDs | 2x800GB Mixed Use SSDs |
Drive Capacities | |
SFF SSDs (Mixed Use) | 400GB, 800GB, 1.6TB, 3.2TB |
LFF SSDs (Mixed Use) | 400GB, 800GB |
SFF HDDs | 15K: 300GB, 600GB, 900GB
10K: 300GB, 600GB, 1.2TB, 1.8TB, 2.4TB |
LFF HDDs | 7.2K: 2TB, 4TB, 6TB, 8TB, 10TB, 12TB |
SEDs | Encryption not supported |
