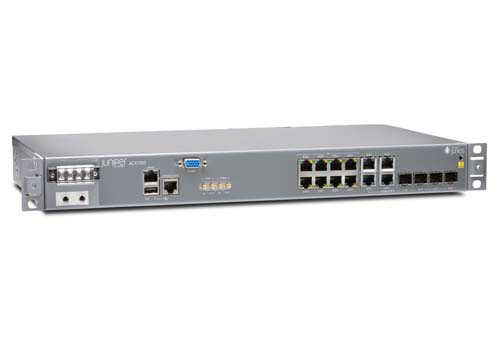

Juniper ACX1100

Juniper ACX1100

The compact, 1 U, environmentally hardened ACX1100 is an Ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. ACX Series Universal Access Routers cost-effectiv

Danh mục:

Mô tả

Thiết bị mạng Router Juniper ACX1100

ACX1100
System ThroughputUp to 60 Gbps
Interface Support8xGbE Copper
4xGbE Combo (Copper/Fiber)
Dimensions (W x H x D)17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Maximum Weight7.8 lb (3.54 kg)
Power (DC)-48V telco nominal or
-60V telco nominal or
+24 VDC nominal
Power (AC)90 to 240 V AC
Power Draw35 W (ACX1100-AC)
40 W (ACX1100-DC)
Humidity95% RH noncondensing
Noise level0dB (acoustic noise) (negligible – only passive cooling is used)
Operating Temperature-40° to 158° F (-40° to 70° C)
