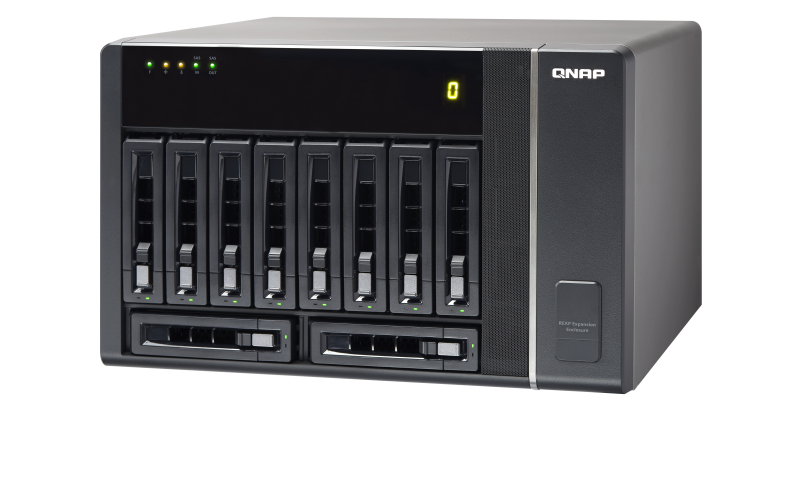

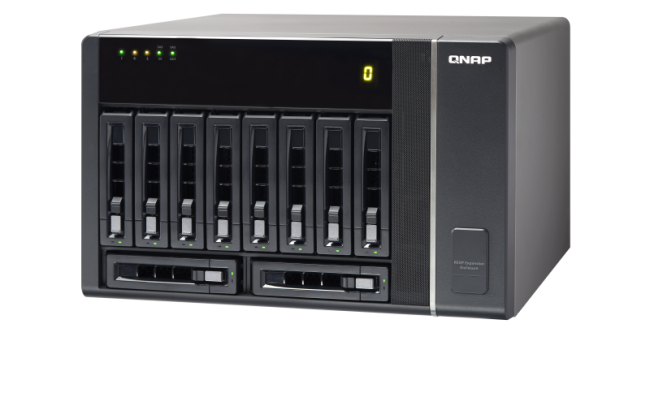

The QNAP REXP-1000 Pro expansion enclosure is designed for expanding the storage space on the Turbo NAS and can support maximum 240TB raw capacity* by connecting multiple expansion enclosures via high-speed mini SAS cables. This is especially useful for large data applications, such as video surveillance, data archiving, and TV broadcast storage.

Danh mục:

Mô tả

Thiết bị lưu trữ QNAP REXP-1000 Pro

Host Interface Two SAS 6Gbps 4x wide port (IN port, OUT port)
Hard Drive 10 x 3.5-inch SAS/SATA 6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5-inch SAS/SATA, SSD hard drive

  1. The standard system is shipped without hard drives.
  2. For the hard drive compatibility list, please visit compatibility.
LED Indicators Front panel: Status, fan error, system over heat, SAS link, SAS error, enclosure ID
Form Factor Tower
Dimensions 217.5(H) x 327(W) x 321.2(D) mm
8.54(H) x 12.87(W) x 12.65(D) inch
Weight Net weight (NAS only) : 9.24 kg/20.37 lb
Gross weight (with packing and accessories) : 13.78 kg/30.38 lb
Sound Level* Standby: 24.5 dB
Sound pressure (LpAm): 34.6 dB(A)
Power Consumption Sleep mode: 63.6W
In operation: 169.52W
(with 10 near line SAS hard drive installed)
Temperature 0-40˚C
Relative Humidity 5~95% RH non-condensing, wet bulb: 27˚C.
Power Supply ATX 350W, Input: 110-240 Vac~, 47-63Hz, 5A
COM Port Reserved for system maintenance
Fan 2 x 12 cm smart cooling fan
