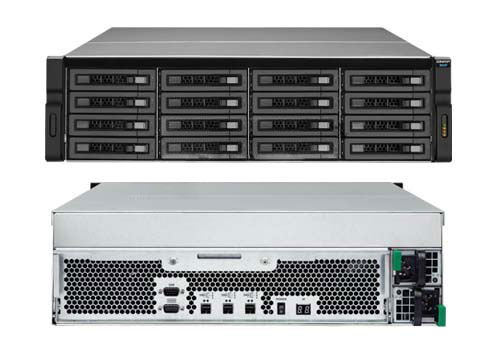

QNAP TDS-16489U

QNAP furthers its innovation into the field of business servers and introduces the TDS-16489U, a powerful Double Server that integrates an application server and storage server into one chassis. The TDS-16489U is powered by dual Intel® Xeon® E5 processors with RAM expandable to 1TB and with a server-grade hardware design that optimizes mission-critical tasks and boasts unrivaled performance for Big Data computing. Coupled with Auto Tiering supp

Danh mục:

Mô tả

Thiết bị lưu trữ QNAP TDS-16489U

Model Name TDS-16489U-SA1
(E5-2620 2.4GHz 6-core processor x2, 64GB DDR4 RDIMM)

TDS-16489U-SB2
(E5-2630 2.4GHz 8-core processor x2, 128GB DDR4 RDIMM)

 TDS-16489U-SA2
(E5-2620 2.4GHz 6-core processor x2, 128GB DDR4 RDIMM)

TDS-16489U-SB3
(E5-2630 2.4GHz 8-core processor x2, 256GB DDR4 RDIMM)
CPU Intel® Xeon® E5-2600 v3 Family processor

  1. Intel® Xeon® 4-core Processor E5-2623 v3 (10M Cache, 3.00 GHz, 4-core)*
  2. Intel® Xeon® 6-core Processor E5-2620 v3 (15M Cache, 2.40 GHz)
  3. Intel® Xeon® 8-core Processor E5-2630 v3 (20M Cache, 2.40 GHz)
  4. Intel® Xeon® 8-core Processor E5-2640 v3 (20M Cache, 2.60 GHz)*

*Available with customization requirement
Memory System memory: RDIMM / LRDIMM
Total memory slots:16

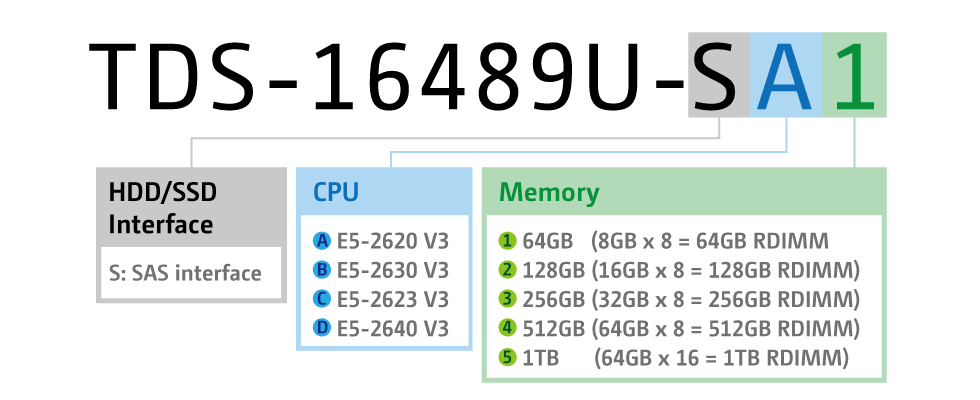

Naming rule:
USB 4 x USB 3.0 port
Hard Drive
  1. 16 x 3.5-inch SAS (12Gbps/6Gbps), SATA (6Gbps/3Gbps) hard drive, or 2.5-inch SAS/SATA SSD
  2. 4 x 2.5-inch SAS (12Gbps) SSD, or SAS/SATA (6Gbps/3Gbps) SSD
Maximized Raw Capacity 128 TB
Hard Drive Interface SAS 12Gb/s, backward compatible with SAS/SATA 6Gbps
10/100/1000 Mbps LAN Port 2
10Gbps LAN Port 4 x SFP+
PCIe Slot 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16)
Form Factor 3U, rackmount
Dimension 130.8 (H) x 444 (W) x 744 (D) mm
Weight Net weight (NAS only): 22.42 kg/ 49.43 lb
Gross weight (with packing and accessories): 30.19 kg/ 66.56 lb
Sound Level* Sound pressure (LpAm) :37.8 dB(A)
Power Consumption Sleep mode: 254.21 W
In Operation: 362.86 W
Power Supply 650W (Redundant power)
Fan 4 x 6cm smart cooling fan (12V DC)
