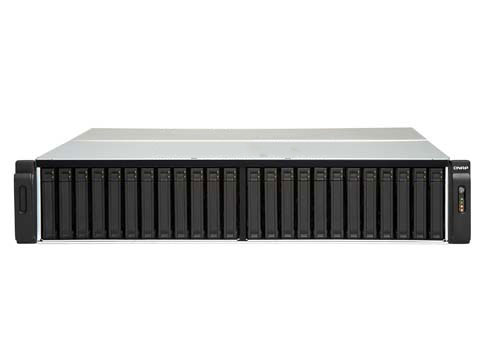

QNAP TES-3085U

QNAP TES-3085U

owered by an Intel® Xeon® D processor, the powerful enterprise-class TES-3085U is open for two operating systems – either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology

Danh mục:

Mô tả

Thiết bị lưu trữ QNAP TES-3085

Ordering P/NTES-3085U-D1521-16GR
TES-3085U-D1531-32GR
TES-3085U-D1548-32G
TES-3085U-D1548-64G
TES-3085U-D1548-16GR
TES-3085U-D1548-32GR
TES-3085U-D1548-128GR
CPUTES-3085U-D1521-16GR:
Intel® Xeon® Processor D-1521, 4-core 2.4 GHz

TES-3085U-D1531-32GR:
Intel® Xeon® Processor D-1531, 6-core 2.2 GHz

TES-3085U-D1548-32G / TES-3085U-D1548-64G / TES-3085U-D1548-16GR / TES-3085U-D1548-32GR / TES-3085U-D1548-128GR:
Intel® Xeon® Processor D-1548, 8-core 2.0 GHz

System memoryTotal DIMM slots: 4
Maximum memory: DDR4 128 GB ( 32 GB RDIMM x 4 )
Memory modules pre-installed:
TES-3085U-D1521-16GR: 16 GB ECC RAM ( 8 GB RDIMM x 2 )
TES-3085U-D1531-32GR: 32 GB ECC RAM ( 8 GB RDIMM x 4 )
TES-3085U-D1548-32G: 32 GB non-ECC RAM ( 16 GB UDIMM x 2 )
TES-3085U-D1548-64G: 64 GB non-ECC RAM ( 16 GB UDIMM x 4 )
TES-3085U-D1548-16GR: 16 GB ECC RAM ( 8 GB RDIMM x 2 )
TES-3085U-D1548-32GR: 32 GB ECC RAM ( 8 GB RDIMM x 4 )
TES-3085U-D1548-128GR: 128 GB ECC RAM ( 32 GB RDIMM x 4 )

Note: TES-3085U requires at least 32GB RAM for running QES operating system.

Flash Memory4 GB DOM
Hard Drive TrayFront: 2.5″x 24
Rear: 2.5″ SSD slot x 6
Supported Hard DriveFront: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD
Rear: SATA 6Gb/s SSD
USB2 x USB 3.0 port (rear)
Support USB printer, pen drive, USB hub, and USB UPS etc.
LAN Port2 x SFP+ 10GbE ports, 4 x Gigabit ports
LED Indicators10 GbE, Status, LAN, Storage expansion port status
ButtonsSystem: Power button and reset button
Form Factor2U, Rackmount
Dimensions (H x W x D)88.3 x 439 x 484.5 mm
3.47 x 17.28 x 19.07 inch
WeightNet weight (NAS only): 13.98 kg / 30.82lb
Gross weight (with packing and accessories):
Temperature0-40˚C
Relative Humidity5~95% non-condensing, wet bulb: 27˚C.
Power SupplyRedundant power: Input 90~264VAC; 450W x 2
