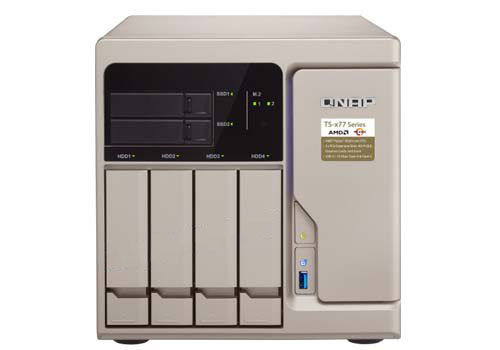

QNAP TS-677

QNAP TS-677

The TS-677 powered by AMD’s new 14nm Ryzen™ processor redefines the high-end desktop business NAS for greater video and virtual machine performance with up to 6 cores/12 threads native processing and Turbo Core up to 3.6 GHz

Category:

Description

Thiết bị lưu trữ QNAP TS-677

CPUProcessor: AMD Ryzen™ 5 1600 6-core/12-thread 3.2 GHz processor, Turbo Core 3.6 GHz
Architecture: 64-bit
Graphics: Optional (with PCIe expansion card)
Encryption Engine: AES-NI
System Memory8 GB DDR4 (2 x 4 GB)
Maximum Memory64 GB (4 x 16 GB)
Memory Slot4 x UDIMM DDR4
(For dual- or quad-DIMM configurations, you must use a pair of identical DDR4 modules.)
Flash Memory512MB DOM
Drive Bay4 x 3.5-inch SATA 6 Gbps bays
2 x 2.5-inch SATA 6 Gbps bays
Drive Compatibility3.5-inch bays:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives

2.5-inch bays:
• 2.5-inch solid state drives

M.2 SSD Slot2 x M.2 2240/2260/2280/22110 SATA 6Gb/s SSDs

Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

SSD Cache Acceleration Support• 3.5-inch drive bays 1 to 4
• 2.5-inch drive bays 1 to 2
• M.2 slots 1 to 2
• Optional: SSD using PCIe expansion slot
Hot-swappableYes
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
10 Gigabit Ethernet PortOptional: With PCIe expansion card
Gigabit Ethernet Port4 x RJ45
PCIe Slot1 x PCIe 3.0 x8
1 x PCIe 3.0 x4
1 x PCIe 2.0 x4
USB Port2 x USB 3.1 10 Gbps
• Back: 1 x USB 3.1 10 Gbps Type-C
• Back: 1 x USB 3.1 10 Gbps Type-A

6 x USB 3.0
• Front: 1 x USB 3.0 Type-A (Note: It comes with the One-Touch Copy button)
• Back: 5 x USB 3.0 Type-A

HDMI OutputOptional: With PCIe expansion card
Audio• 2 x 3.5 mm dynamic microphone jacks
• 1 x 3.5 mm line-out jack
• 2 x speakers
Note: You cannot use the speakers and the line-out jack simultaneously.
Display PanelMonochrome backlit LCD display with Enter and Select buttons
USB One Touch CopyFront: USB 3.0 Type-A
Form FactorTower
Dimensions (H x W x D)231.9 x 224.9 x 319.8 mm
9.1 x 8.9 x 12.6 inch
Net Weight7.7 kg (16.96 lbs)
Power Suply Unit250W, 100-240V AC, 50/60Hz
FanSystem: 1 x 80 mm
CPU: 2 x 90 mm
Operating Temperature & Relative Humidity0 ~ 40˚C ( 32˚F ~ 104˚F ), 5 ~ 95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Security SlotKensington security slot
