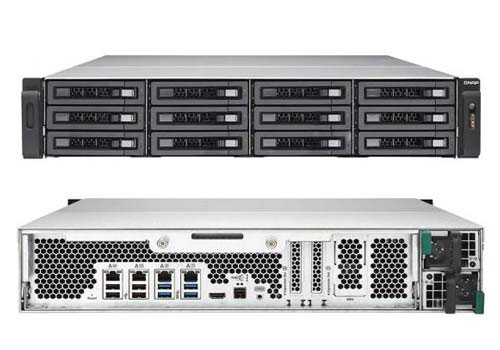

QNAP TS-EC1280U R2

QNAP TS-EC1280U R2

QNAP TS-EC1280U R2, featuring the easy-to-use QTS operating system, provides a reliable and scalable NAS solution to fulfill data backup, file synchronization and remote access. The TS-EC1280U R2 is 10GbE-ready, delivers exceptional performance, and supp

Category:

Description

Thiết bị lưu trữ QNAP TS-EC1280U R2

Model NameTS-EC1280U-E3-4GE-R2
TS-EC1280U-i3-4GE-R2
TS-EC1280U-i3-8G-R2
CPUTS-EC1280U-E3-4GE-R2: Intel® Xeon® E3-1246 v3 Quad-core processor
TS-EC1280U-i3-4GE-R2: Intel ® Core i3-4150 processor
TS-EC1280U-i3-8G-R2:Intel® Core i3-4150 processor
MemoryTotal memory slots: 4
TS-EC1280U-E3-4GE-R2/ TS-EC1280U-i3-4GE-R2:

System memory: 4 GB DDR3 ECC RAM
Memory module pre-installed: 2 GB x2
Memory expandable up to: 32 GB (8GB x4)

TS-EC1280U-i3-8G-R2:
System memory: 8 GB DDR3 non-ECC RAM
Memory module pre-installed: 4 GB x2
Memory expandable up to: 32 GB (8GB x4)

Flash Memory512MB DOM
Internal Cache PortTwo mSATA port on board for read caching
Hard Drive12 x 3.5-inch SATA 6Gbps/3Gbps hard drive or 2.5-inch SATA, 6Gbps/3Gbps hard drive SSD hard drive
Hard Drive Tray12 x hot-swappable and lockable tray
LAN PortBuilt-in 2 x 10 GbE SFP+ ports (LAN-10G2SF-MLX) and 4 x GbE ports
40GbE is optional
LED IndicatorsStatus, 10 GbE, LAN, eSATA, storage expansion port status
USB4x USB 3.0 port (rear)
4x USB 2.0 port (rear)

Support USB printer, pen drive, USB hub, and USB UPS etc.

ButtonsSystem: Power button and reset button
Alarm BuzzerSystem warning
Form Factor2U, Rackmount
Dimensions88(H) x 442.5(W) x 530.5(D) mm
3.46(H) x 17.42(W) x 20.89(D) inch
WeightNet weight (NAS only) : 14.18 kg/ 31.26 lb
Gross weight (with packing and accessories) : 21.41 kg/ 47.20 lb
Power Consumption (W)Sleep mode: 80.41
In Operation: 166.58 W
(with 12 x 1TB hard drive installed)
Sound Level*Sound pressure (LpAm) :55.3 dB(A)
Temperature0-40˚C
Relative Humidity5~95% non-condensing, wet bulb: 27˚C.
Power SupplyRedundant power:
Input: 47-63 Hz; 100-127V~/ 8A; 200-240V/ 4A
Output: 400W
