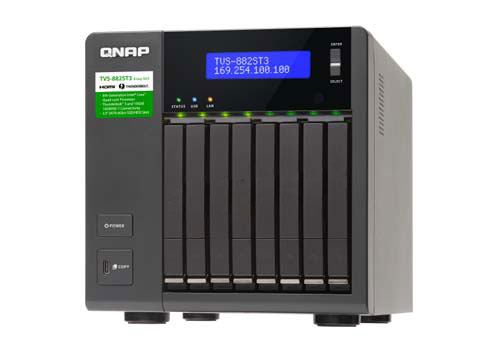

QNAP TVS-882ST3

QNAP TVS-882ST3

The TVS-882ST3 is powered by a 6th Generation Intel® Core™ quad-core processor with AES-NI accelerated encryption, 10GbE connectivity, USB 3.1 Gen2 10Gbps Type-C and Type-A ports, and dual Thunderbolt™ 3 ports with an innovative software-based Thunderbolt-to-Ethernet (T2E) Converter.

Danh mục:

Mô tả

Thiết bị lưu trữ QNAP TVS-882ST3

Ordering SKUsTVS-882ST3-i7-16GTVS-882ST3-i7-8GTVS-882ST3-i5-8G
CPUIntel® Core™ i7-6700HQ quad-core 2.6 GHz, up to 3.5 GHzIntel® Core™ i5-6442EQ quad-core 1.9 GHz, up to 2.7 GHz
Encryption Accleration
Yes, AES-NI
System Memory16GB (2 x 8GB)8GB (2 x 4GB)
Maximum Memory32GB (2 x 16GB)
Number of Memory Slots2 x DDR4 SODIMM slots
(For dual-DIMM configuration, you must use a pair of identical DDR4 modules.)
Flash512MB
Drive8 x 2.5″ SATA 6Gb/s HDD/SSD
Thunderbolt Port2 x Thunderbolt 3
10GbE LAN Port2 x 10GBASE-T
GbE LAN Port2 x Gigabit RJ45
USB 3.1 Port1 x Type-C USB 3.1 Gen2 10Gbps
1 x Type-A USB 3.1 Gen2 10Gbps
USB 3.0 Port2
LCM DisplayYes
PCIe Slot2 (1 PCIe 3.0 x8 + 1 PCIe 3.0 x4)
Note: Pre-installed with a Thunderbolt 3 card and a 10GbE card
HDMI Port1, up to 3846 x 2160, 30Hz
Audio Input3.5mm microphone input jack
Audio Output3.5mm line out jack
LED IndicatorsStatus/Power, USB, Drive 1-8
ButtonsPower, USB copy, reset, select, enter
Infrared ReceiverYes, supplied with QNAP RM-IR004 remote control
Other InterfacesKensington security slot, maintenance port
Dimension (HxWxD)177 x 180 x 235 mm
6.97 x 7.09 x 9.25 inch
WeightNet (NAS only): 3.97 kg (8.75lbs)
Operating Temperature0 ~ 40˚C (32˚F ~ 104˚F)
Relatie Humidity5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Sound Level (dB)*15.2 dB (A)
Power ConsumptionHDD sleep: 26.36W
Typical operation: 43.43W
HDD sleep: 25.57W
Typical operation: 42.70W
Power SupplyATX 250W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Fan1 x 12 cm (12V DC)
