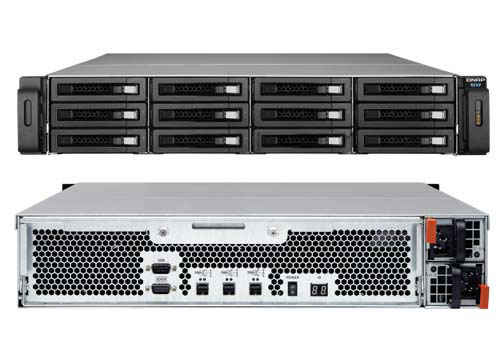

QNAP UX-1220U-RP

QNAP UX-1220U-RP

The REXP-1220U-RP expansion enclosure is designed for expanding the storage space on a QNAP NAS* by connecting multiple expansion enclosures via high-speed mini SAS cables. Featuring a 12 Gbps SAS interface on the chassis, the REXP-1220U-RP ensures fast data passthrough from 12 Gbps SAS-enabled QNAP NAS even when using 6Gbps hard drives. This is especially useful for large data applications that require high performance interconnection, such as video surveillance, archiving large data, and TV broadcast storage.

Danh mục:

Mô tả

Thiết bị lưu trữ QNAP UX-1220U-RP

Host InterfaceThree SAS 12Gbps 4x wide port
Hard Drive12x 3.5″ SAS/SATA 12/6Gb/s, SAS/SATA 3Gb/s hard drive or 2.5″ SAS/SATA SSD
LED IndicatorsFront panel: Status, fault, system over heat, fan error
Rear panel: SAS link, SAS error, enclosure ID
Form Factor2U rackmount
Dimensions (DxWxH) mm88 (H) x 439 (W) x 520(D) mm
3.46 (H) x 17.28 (W)x 20.47 (D) inch
WeightNet weight (NAS only): 14.8 kg/ 32.63 lb
Gross weight (with packing and accessories):21.99 kg/ 48.48 lb
Sound Level*Sound pressure (LpAm): 46.1 dB(A)
Temperature0-40˚C
Humidity5~95% RH non-condensing, wet bulb: 27˚C
Power Consumption: In Operation162.47W
Power SupplyRedundant/ Hot Swap ATX Power Supply, 400W, 90-264Vac~, 47-63Hz
Fan3 x 6 cm smart cooling fan (hot-swappable fan module)
