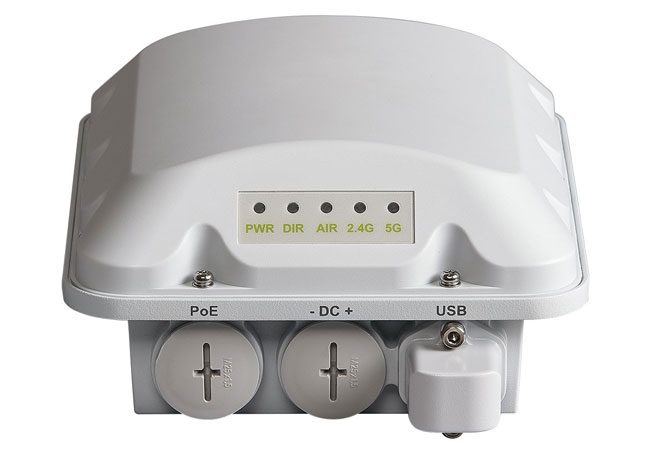

Ruckus T310

Ruckus T310

Wifi Ruckus T310 802.11ac Wave 2 2×2:2 Outdoor, 512 clients per AP, Bandwitch 867 Mbps, IP-67, omni internal Beamflex+ concurrent Wireless Access Point. Support 31 SSID

Danh mục:

Mô tả

Thiết bị phát sóng Wifi Outdoor Ruckus T310

Product NameRuckus T310
Wi-Fi StandardsIEEE 802.11a/b/g/n/ac Wave 2
Supported Rates• 802.11ac: 6.5 to 876Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80, NSS = 1 to 2 for VHT80)
• 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165
MIMO• 2×2 SU-MIMO
• 2×2 MU-MIMO
Spatial Streams• 2 SU-MIMO
• 2 MU-MIMO
Channelization20, 40, 80MHz
Security• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS
Other Wi-Fi Features• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr
RF
Antenna TypeBeamFlex+ adaptive antennas with polarization diversity
Antenna Gain (max)• 2.4GHz: 2dBi
• 5GHz: 3dBi
Peak Transmit Power (aggregate across MIMO chains)• 2.4GHz: 23dBm
• 5GHz: 24dBm
BeamFlex+ SINR Transmit Power GainUp to 6 dB
BeamFlex+ SINR Receive Power GainUp to 4 dB
Minimum Receive Sensitivity• -101dBm
Frequency Bands• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz
PERFORMANCE AND CAPACITY
Peak PHY Rates• 2.4GHz: 300Mbps
• 5GHz: 867Mbps
Client CapacityUp to 512 clients per AP
SSIDUp to 31 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management• ChannelFly
• Background Scan Based
Client Density Management• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization
MobilitySmartRoam
Diagnostic Tools• Spectrum Analysis
• SpeedFlex
NETWORKING
Controller Platform Support• SmartZone
• ZoneDirector
• Standalone
IPIPv4, IPv6
MeshSmartMesh™ wireless meshing technology. Selfhealing Mesh
VLAN• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based
802.1xAuthenticator & Supplicant
TunnelL2TP, GRE, Soft-GRE
Policy Management Tools• Application Visibility and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting
PHYSICAL INTERFACES
Ethernet1 x 1GbE port, RJ-45
PHYSICAL CHARACTERISTICS
Physical Size• 18.1(L) x 15.1(W) x 7.9 (H) cm
• 7.1(L) x 5.9(W) x 3.1(H) in.
Weight1kg (2.1lbs)
Ingress ProtectionIP-67
Mounting• Wall, Drop ceiling, Desk
• Pole Mount Diameter 1” to 2.5”
Operating Temperature-20ºC -(4ºF) to 65ºC (149ºF)
Operating HumidityUp to 95%, non-condensing
POWER
802.3af/at (PoE)7.92W
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage
Standards Compliance• EN 60950-1 Safety
• EN 60950-22 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation
