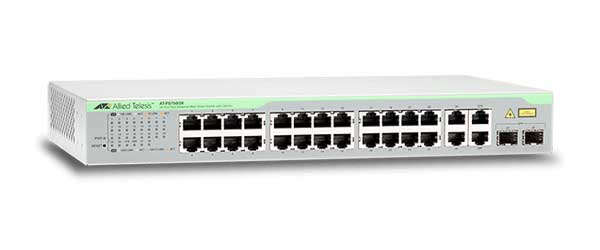

Allied Telesis FS750/28

Thống số kỹ thuật Switch Allied Telesis FS750/28

Performance
Port	24-port 10/100TX + 2-port 10/100/1000T + 2-port SFP/1000T
MAC addresses	8K
VLAN IDs available	4000
Max VLANs	256
Flash	16 MB
DRAM	128 MB
Switch capacity	12.8 Gbps
Forwarding Rate	9.5 Mpps
Standards and Compliance
IEEE 802.3	CSMA/CD 802.3i 10T
IEEE 802.3u	100TX
IEEE 802.3z	1000SX/LX
IEEE 802.3z/ab	1000T
IEEE 802.3x	Flow control
IEEE 802.1p	Prioritization (four queues)
IEEE 802.1x	Authentication, Local authentication server(MD5), Remote authentication through RADIUS, Dynamic VLAN assignment, MAC-based authentication, RADIUS
IEEE 802.1d	Bridging
IEEE 802.3ad	Link aggregation
IEEE 802.1Q	Tagged VLAN
IEEE 802.1d	Spanning-Tree
IEEE 802.1w	Rapid Spanning-Tree
IEEE 802.1s	Multiple Spanning-Tree
IEEE 802.1af	PoE
IEEE 802.1at	PoE+
IEEE 802.1az	Energy Efficient Ethernet
Interface connections
10/100TX, 10/100/1000T	RJ-45
SFP	100FX, 1000T, 1000SX/1000LX
Power characteristics
Voltage	100-240 VAC
Frequency	50-60 Hz
Max power consumption	8.7 W
Environmental Specifications
Operating temperature	0 to 40ºC
Non-operating temp	-25 to 70ºC
Operating humidity	5-90% non-condensing
Storage humidity	5-95% non-condensing
Physical Characteristics
Dimensions	330 × 180 × 44 mm
Weight	2.2 kg
