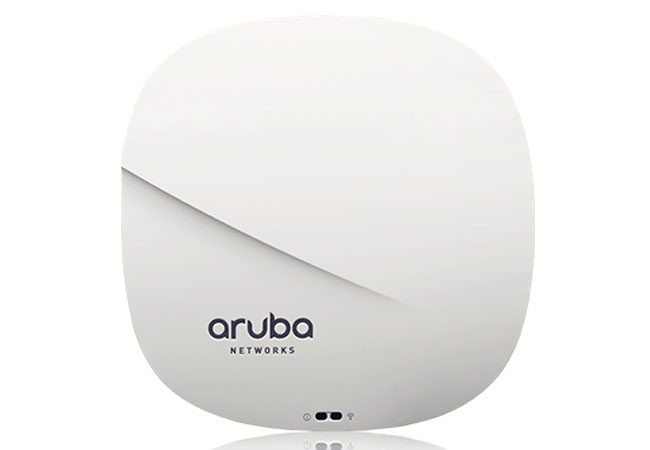

Aruba AP-315 (JW797A)

Mô tả

• Thiết bị phát sóng Wifi Aruba AP-315 (JW797A)

  Wireless Radio Specifications

  • AP type: Indoor, dual radio, 5GHz 802.11ac 4×4 MIMO and 2.4GHz 802.11n 2×2 MIMO
  • Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
  • 5GHz: Four spatial stream Single User (SU) MIMO for up to 1,733Mbps wireless data rate to individual 4×4 VHT80 or 2×2 VHT160 client devices
  • 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate to individual 2×2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
  • 5GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
  • Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio
  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.4835GHz
    • 5.150 to 5.250GHz
    • 5.250 to 5.350GHz
    • 5.470 to 5.725GHz
    • 5.725 to 5.850GHz
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
    • 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
    • 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)

  WiFi Antennas

  • AP-315/IAP-315: Four integrated dual-band downtilt omni-directional antennas for 4×4 MIMO with maximum antenna gain of 3.1dBi in 2.4GHz and 5.0dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.

  Other Interfaces

  • One 10/100/1000BASE-T Ethernet network interface (RJ-45)
    • Auto-sensing link speed and MDI/MDX
  • 802.3az Energy Efficient Ethernet (EEE)
  • USB 2.0 host interface (Type A connector)

  Power Sources and Consumption

  • The AP supports direct DC power and Power over Ethernet (POE)
  • When both power sources are available, DC power takes priority over POE

  Mechanical

  • Dimensions/weight (unit, excluding mount accessories):
    • 182mm(W) x 180mm(D) x 48mm (H)
    • 650g/23oz
  • Dimensions/weight (shipping):
    • 223mm(W) x 218mm(D) x 55mm(H) (W x D x H)
    • 850g/30oz

  Warranty

  • Aruba limited lifetime warranty
