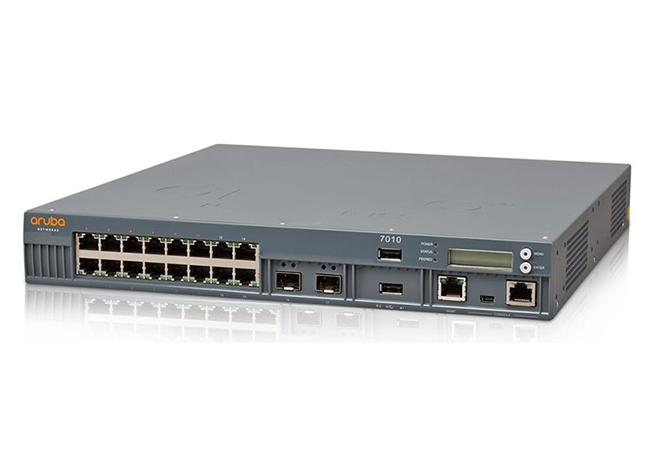

Aruba Controllers 7010 (JW702A)

Aruba Controllers JW702A is the Aruba 7010 (RW) FIPS/TAA 16p 150W PoE+ 10/100/1000BASE-T 1GBASE-X SFP 32 AP and 2K Clients Controller. Aruba 7000 Series Mobility Controllers optimize cloud services and secure enterprise applications for hybrid WAN at branch offices, while reducing the cost and complexity of deploying and managing the network.

Thiết bị mạng Aruba Controllers 7010 (JW702A)

Thông số kỹ thuật JW702A
Product Model	Aruba 7010 (RW) 16p 150W PoE+ 10/100/1000BASE-T 1G BASE-X SFP 32 AP and 2K Clients Controller
Maximum campus AP licenses	32
Maximum remote AP licenses	32
Maximum concurrent users/devices	2,048
Maximum VLANs	4,094
Active firewall sessions	32,768
Concurrent GRE tunnels	512
Concurrent IPsec sessions	1,024
Mobility Access Switch tunneled-node ports	1,024
Firewall throughput	4 Gbps
Encrypted throughput (3DES, AES-CBC)	2.4 Gbps
Encrypted throughput (AES-CCM)	3.4 Gbps
Form factor/footprint	1 rack unit
Auto-negotiating 10/100/1000BASE-T	16
Gigabit Ethernet ports (GBIC or SFP)	2 SFP
USB 2.0	Yes
Management/status LEDs	Yes (2)
LINK/ACT and status LEDs	Yes
LCD panel and navigation buttons	No
Console port	Yes (micro USB/RJ-45)
Out-of-band management port	Yes
PoE Role/Mode	Power Source Equipment (PSE)
PoE In or Out	Out
Number of PoE+ capable Ports	12
Max concurrent of PoE Ports	12
Max concurrent PoE+ Ports	5
PoE Power Budget	150W
Dimension (H × W × D)	4.42 cm x 31.75 cm x 33.7 cm (1.74” x 12.75” x 13.3”)
Weight	3.4 kg (7.5 lbs)
MTBF (hours, @ 25C)	232,843
Operating temperature	0° C to 40° C
Storage temperature	-40° C to 70° C
Humidity/storage humidity	10% to 95%,
NC Operating altitude	10,000 feet
Acoustic noise	39.8 – 58.6 dBA
Maximum power consumption	190W (with PoE)
Telco	Common Language Equipment Identifier (CLEI) Code
Regulatory SKU information	ARCN01014(7005), ARCN0103(7010), ARCN7024(7024), ARCN7030(7030)
Minimum ArubaOS Release	7005, AOS 6.4.1.0; 7008, AOS 6.5.0.0; 7010, AOS 6.4.1.0; 7024, AOS 6.4.3.0; 7030, AOS 6.4.1.0

Bảng hiệu năng và công suất hoạt động Aruba 7000 controllers

Model	7005	7008	7010	7024	7030
Maximum campus AP licenses	16	16	32	32	64
Maximum remote AP licenses	16	16	32	32	64
Maximum concurrent users/devices	1,024	1,024	2,048	2,048	4,094
Maximum VLANs	4,094	4,094	4,094	4,094	4,094
Active firewall sessions	16,384	16,384	32,768	32,768	65,536
Concurrent GRE tunnels	256	256	512	512	1,024
Concurrent IPsec sessions	512	512	1,024	1,024	2,048
Mobility Access Switch tunneled-node ports	512	512	1,024	1,024	2,048
Firewall throughput	2 Gbps	2 Gbps	4 Gbps	4 Gbps	8 Gbps
Encrypted throughput (3DES, AES-CBC)	1.2 Gbps	1.2 Gbps	2.4 Gbps	2.4 Gbps	2.4 Gbps
Encrypted throughput (AES-CCM)	1.6 Gbps	1.6 Gbps	3.4 Gbps	3.4 Gbps	4 Gbps
