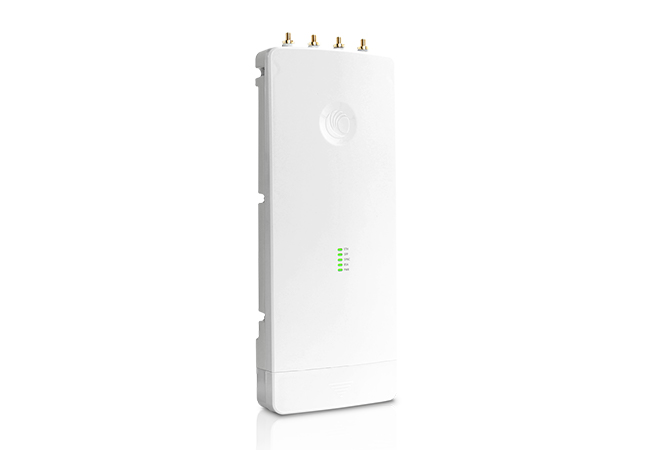

Cambium ePMP 3000

Cambium ePMP 3000

Thiết bị Cambium ePMP 3000: Access Point thu phát thế hệ mới. 4X4 MUMIMO/OFDM with peak throughput of 1.2 Gbp, Subscribers per Sector Up to 120, Ethernet Interfaced 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
Danh mục:

Mô tả

Thiết bị Wireless Cambium ePMP 3000

Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 4910 – 5980 MHz (exact frequencies as allowed by local regulations)
Channel Width 20 | 40 | 80 MHz
Interface
MAC
(Media Access Control) Layer
Cambium Proprietary
Physical Layer 4×4 MUMIMO/OFDM
Ethernet Interfaced 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter
Protocols Used IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.lQ with 802.1p priority
Performance
Subscribers per Sector Up to 120
Nominal Receive Sensitivity
(w/FEC) @20MHz Channel
MCS 0, -92 MCS 8 supported by Wi-Fi -68
Nominal Receive Sensitivity
(w/FEC) @40MHz Channel
MCS0, -89 MCS9, -64
Nominal Receive Sensitivity
(w/FEC) @80 MHz Channel
MCS0, -86, MCS9 – 61
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
GPS Synchronization Yes, via Internal GPS or Cambium Sync
Quality of Service Three-level priority (Voice, High, Low)
DSO Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel
Fast DFS Change to alternate radar free channel with background availability check
Link Budget
Antenna Sector Antenna (C050910D301A ) Available
Transmit Power Range 0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)
Physical
Sector Antenna Connection 4 x 50 ohm, RP (reverse polarity) SMA
Beamforming Antenna Connection 2 x 50 ohm, RP (reverse polarity) SMA, DC coupled (powering antenna)
GPS Antenna Connection 1 x 50 ohm, RP (reverse polarity) SMA
Surge Suppression 1 Joule Integrated. C000000L033A – 56V Gigabit surge suppressor recommended for optimal surge protection
Weight >1.3 kg
Dimensions 137 x 330 x 45 mm
