Mô tả

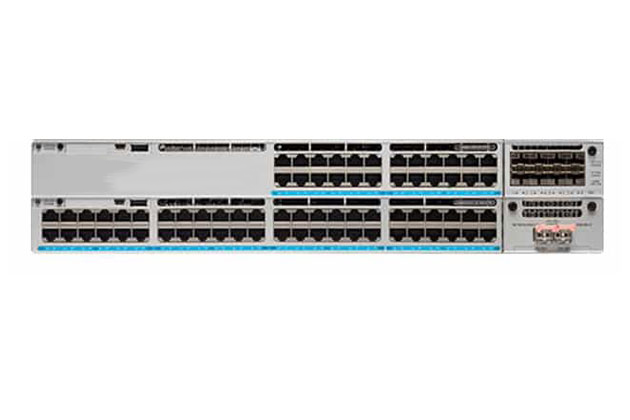

Thiết bị mạng Switch Cisco C9200L-48PXG-2Y-E
Model | C9200L-48PXG-2Y-E |
Switching capacity | 340 Gbps |
Forwarding rate | 252.97 Mpps |
Virtual Networks | 1 |
Stacking bandwidth | 80 Gbps |
Total number of MAC addresses | 16,000 |
Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
IPv4 routing entries | 3,000 |
IPv6 routing entries | 1,500 |
Multicast routing scale | 1,000 |
QoS scale entries | 1,000 |
ACL scale entries | 1,500 |
Packet buffer per SKU | 6 MB buffers |
Flexible NetFlow (FNF) entries | 16,000 flows |
DRAM | 2 GB |
Flash | 4 GB |
VLAN IDs | 1024 |
Total Switched Virtual Interfaces (SVIs) | 512 |
Jumbo frames | 9198 bytes |
Wireless bandwidth per switch | N/A |
Default primary power supply | PWR-C5-1KWAC |
Available PoE power with single primary power supply only | 740W |
Optional secondary power supply | PWR-C5-1KWAC |
Available PoE power with additional secondary power supply | 1440W |
Cáp StackWise-80 and StackWise-160 Kit
Product number | Product description |
C9200L-STACK-KIT= | C9200L Stack Kit Spare |
STACK-T4-50CM | 50CM Type 3 Stacking Cable |
STACK-T4-1M | 1M Type 3 Stacking Cable |
STACK-T4-3M | 3M Type 3 Stacking Cable |
Power nguồn cho Switch Cisco C9200L-48PXG-2Y-E
Product Number | Product Description |
PWR-C5-1KWAC/2= | 1000WAC power supply spare |
