Cisco C9300-24P-A

Cisco C9300-24P-A

C9300-24P-A Catalyst 9300 24-port modular uplinks PoE+ 445W, Network Advantage. Hàng chính hãng bảo hành 12 – 60 tháng, đầy đủ CO, CQ do Cisco Việt Nam cấp.
Danh mục:

Mô tả

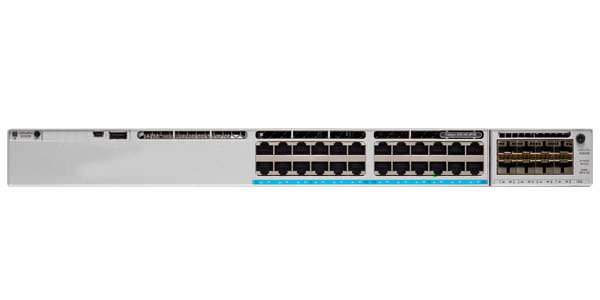

Thiết bị mạng Switch Cisco C9300-24P-A

Mã sản phẩm C9300-24P-A
Product Description Catalyst 9300 48-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24 POE+
Default AC power supply 715W AC
Available PoE power 445W
Cisco StackWise-480 Yes
Cisco StackPower Yes
Default power supply PWR-C1-715WAC
Switching capacity 208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU 16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries 64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack 208
Wireless bandwidth per switch Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications ●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions certifications ●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

Environmental Reduction of Hazardous Substances (ROHS) 5

Network Module Uplink mở rộng cho Cisco C9300-24P-A

Product number Description
C9300-NM-4G 9300 Series 4x 1G Network Module
C9300-NM-4G= Catalyst 9300 4 x 1GE Network Module, spare
C9300-NM-8X 9300 Series 8x 10G Network Module
C9300-NM-8X= Catalyst 9300 8 x 10GE Network Module, spare
C9300-NM-2Q 9300 Series 2x 40G Network Module
C9300-NM-2Q= Catalyst 9300 2 x 40GE Network Module, spare
C9300-NM-2Y Catalyst 9300 2 x 25G Network Module
C9300-NM-2Y= Catalyst 9300 2 x 25G Network Module, spare
C9300-NM-4M Catalyst 9300 4 x MGig Network Module, spare
C9300-NM-4M= Catalyst 9300 4 x MGig Network Module, spare

Stacking cables cho Switch Cisco C9300-24P-A

Product Number Product Description
STACK-T1-50CM 50CM Type 3 Stacking Cable
STACK-T1-50CM= 50CM Type 3 Stacking Cable, spare
STACK-T1-1M 1M Type 3 Stacking Cable
STACK-T1-1M= 1M Type 3 Stacking Cable, spare
STACK-T1-3M 3M Type 3 Stacking Cable
STACK-T1-3M= 3M Type 3 Stacking Cable, spare

Power nguồn cho Switch Cisco C9300-24P-A

Product Number Product Description
PWR-C1-715WAC= 715WAC power supply spare
PWR-C1-715WAC-P= 715WAC Platinum-rated power supply spare
