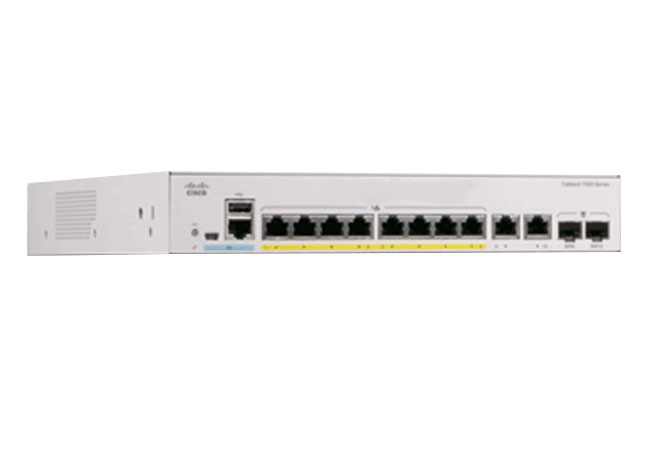

Cisco C1000-8T-2G-L

Cisco C1000-8T-2G-L

Switch Cisco C1000-8T-2G-L 8x Giga Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks
Danh mục:

Mô tả

Thiết bị mạng Switch Cisco C1000-8T-2G-L

Model C1000-8T-2G-L
Hardware
Interface 8 x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks
Console ports
  • 1x RJ-45 Ethernet
  • USB mini-B
  • USB-A port for storage and Bluetooth console
Fanless Yes
Dimensions (WxDxH in inches) 10.56 x 7.28 x 1.73
Memory and processor
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Performance
Forwarding bandwidth 10 Gbps
Switching bandwidth 20 Gbps
Forwarding rate
(64‑byte L3 packets)
14.88 Mpps
Unicast MAC addresses 15,360
IPv4 unicast direct routes 542
IPv4 unicast indirect routes 256
IPv6 unicast direct routes 414
IPv6 unicast indirect routes 128
IPv4 static routes 16
IPv6 static routes 16
IPv4 multicast routes and IGMP groups 1024
IPv6 multicast groups 1024
IPv4/MAC security ACEs 600
IPv6 security ACEs 600
Maximum active VLANs 256
VLAN IDs available 4094
Maximum STP instances 64
Maximum SPAN sessions 4
MTU-L3 packet 9198 bytes
Jumbo Ethernet frame 10,240 bytes
Ingress protection IP20
Dying Gasp Yes
Electrical
Power Use the supplied AC power cord to connect the AC power connector to an AC power outlet
Voltage (auto ranging)
110 to 220V AC in
Frequency
50 to 60 Hz
Current 0.13A to 0.22A
Power rating (maximum consumption) 0.04 kVA
