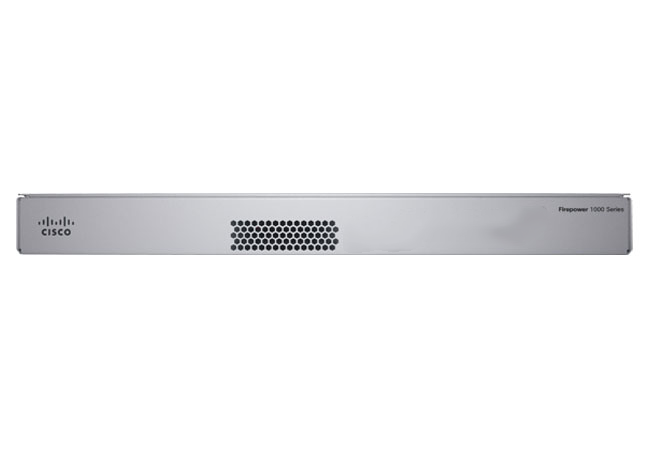

Cisco FPR1140-ASA-K9

Thiết bị tường lửa Firepower Cisco FPR1140-ASA-K9

Model	FPR1140-ASA-K9
Interfaces	8 x RJ-45, 4 x SFP
Integrated network management ports	1 x 10M/100M/1GBASE-T Ethernet port (RJ-45)
Serial port	1 x RJ-45 console
USB	1 x USB 3.0 Type-A (500mA)
Storage	1 x 200 GB
Power supply configuration	+12V
AC input voltage	100 to 240V AC
Weight	8 lb (3.63 kg)
Rack mountable	Yes. Fixed mount brackets included (2-post).
Throughput: Firewall (FW) + Application Visibility and Control (AVC) + Intrusion Prevention System (IPS) (1024B)	2.2 Gbps
Maximum concurrent sessions, with AVC	400K
Maximum new connections per second, with AVC	22K
Transport Layer Security (TLS)	1 Gbps
Throughput: NGIPS (1024B)	2.2 Gbps
IPSec VPN throughput (1024B TCP w/Fastpath)	1.2 Gbps
Maximum VPN Peers	400
Cisco Firepower Device Manager (local management)	Yes
Stateful inspection firewall throughput1	6 Gbps
Stateful inspection firewall throughput (multiprotocol)2	3.5 Gbps
Concurrent firewall connections	400,000
Firewall latency (UDP 64B microseconds)	–
New connections per second	100,000
IPsec VPN throughput (450B UDP L2L test)	1.2 Gbps
Maximum VPN Peers	400
Security contexts (included; maximum)	2; 5
High availability	Active/active and Active/standby
