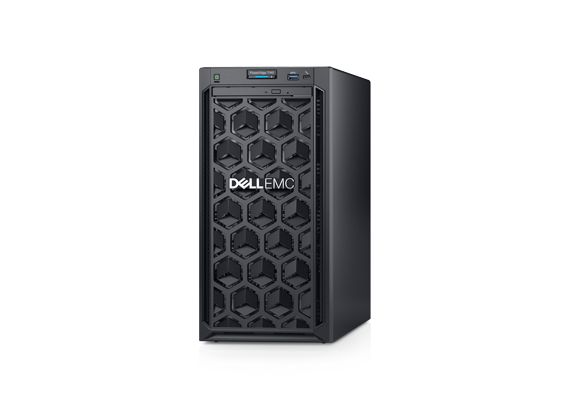

Dell PowerEdge T140

Dell PowerEdge T140

Dell PowerEdge T140: Easy to use, safe, and practical entry-level server for growing businesses. Ideal for file and print, and point of sale applications….

Danh mục:

Mô tả

Cấu hình cơ bản Dell PowerEdge T40 4×3.5″ E-2124, RAM 8GB, PERC H330:

Key Features

  • Processor: Intel Xeon E-2124 (4C, 3.3G)
  • RAM: 8GB UDIMM, 2666MTs
  • HDD: Option. Up to 4 HDD x 3.5″ drive bay
  • Network controller: On-Board LOM 1GBE
  • Storage controllers: PERC H330
  • Embedded management: iDRAC9 Basic
  • PSU:  365W
  • Form factor: Mini tower server

Thống số kỹ thuật Dell PowerEdge T140:

Processor 1 processor from the following:
– Intel® Xeon® E-2100 product family
– Intel Pentium®
– Intel Core i3®
– Intel Celeron®
Memory 4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.
Storage controllers Internal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem: 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
Drive bays Up to 4 x 3.5” cabled bays
Power supplies Single cabled 365W PSU
Dimensions Form factor: Mini tower server Chassis height: 360mm (14.17 in) Chassis width: 175mm (6.89 in) Chassis depth: 454 mm (17.9 in)
Chassis weight: 11.84 kg (26.10 lb.)
Embedded management iDRAC9 with Lifecycle Controller iDRAC Direct
iDRAC RESTful API with Redfish
OpenManage™ Software OpenManage Enterprise OpenManage Essentials OpenManage Power Center OpenManage Mobile
(requires OM Enterprise or OM Essentials)
Integrations and connections Integrations: Connections:
Microsoft® System Center VMware® vCenter™ Nagios Core & Nagios XI Micro Focus
BMC Truesight (available from BMC) Red Hat Ansible Operations Manager i (OMi) IBM Tivoli Netcool/OMNIbus
Tools iDRAC Service Module OpenManage Server Administrator Dell EMC Repository Manager Dell EMC System Update Dell EMC Server Update Utility Dell EMC Update Catalogs Dell EMC RACADM CLI
Security TPM 1.2/2.0 optional Cryptographically signed firmware Silicon Root of Trust Secure Boot
System Lockdown (requires OpenManage Enterprise) Secure Erase
I/O & ports Networking options: 2 X 1GbE LOM 4 PCIe Slots:
Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port
Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector Internal USB: 1x internal USB 3.0 1×8 Gen3 (x16 connector) FH/HL 1×8 Gen3 (x8 connector) FH/HL 1×4 Gen3 (x8 connector) FH/HL 1×1 Gen3 (x1 connector) FH/HL
Supported operating systems Certify XenServer Citrix® XenServer® SUSE® Linux Enterprise Server VMware® ESXi
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux For specifications and interoperability details, see
Ubuntu Server
OEM-ready version available From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit
Recommended support ProSupport Plus for critical systems or ProSupport for comprehensive hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell EMC representative today for more information. Availability and terms of Dell EMC Services vary by region. For more information, visit
