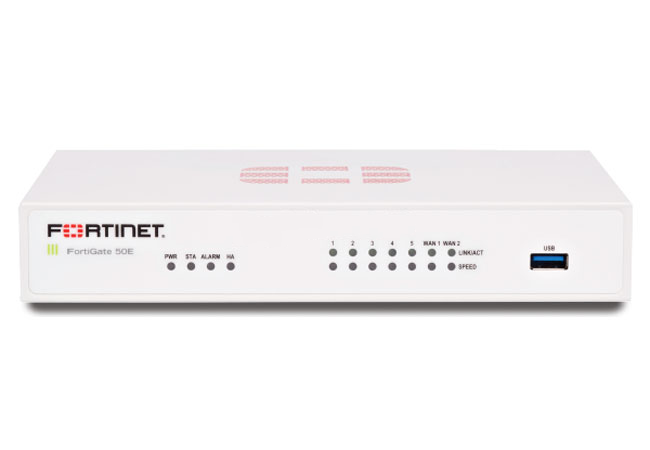

FortiGate 50E (FG-50E-BDL -950-12)

FortiGate 50E (FG-50E-BDL -950-12)

FG-50E-BDL-950-12: Fortinet FortiGate-50E; Hardware: 7x GE RJ45 ports (including 2x WAN ports, 5x Switch ports), maximum managed FortiAPs (Total / Tunnel) 10 / 5; Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud);

Danh mục:

Mô tả

Thiết bị bảo vệ mạng Firewall Fortinet FortiGate-50E

Mã sản phẩmFG-50E
Hardware Specifications
GE RJ45 Switch Ports5
GE RJ45 WAN Ports2
USB Ports1
Console (RJ45)1
Wireless Interface — 802.11 a/b/g/n dual radio,
Internal Storage
System Performance
Firewall Throughput2.5 Gbps
Firewall Latency (64 byte UDP packets)180 μs
Firewall Throughput (Packets Per Second)375 Kpps
Concurrent Sessions (TCP)1.8 Million
New Sessions/Second (TCP)21,000
Firewall Policies5,000
IPsec VPN Throughput (512 byte)90 Mbps
Gateway-to-Gateway IPsec VPN Tunnels200
Client-to-Gateway IPsec VPN Tunnels250
SSL-VPN Throughput100 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)80
SSL Inspection Throughput (IPS, HTTP)185 Mbps
Application Control Throughput (HTTP 64K)450 Mbps
CAPWAP Throughput (HTTP 64K)1.2 Gbps
Virtual Domains (Default / Maximum)05-May
Maximum Number of Switches Supported8
Maximum Number of FortiAPs (Total / Tunnel Mode)10-May
Maximum Number of FortiTokens100
Maximum Number of Registered FortiClients200
High Availability ConfigurationsActive/Active, Active/Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput800 Mbps
System Performance — Enterprise Traffic Mix
IPS Throughput350 Mbps
NGFW Throughput220 Mbps
Threat Protection Throughput160 Mbps
Height x Width x Length (inches)1.44 x 8.52 x 5.5
Height x Width x Length (mm)36.5 x 216 x 140
Weight2.015 lbs (0.914 kg)
Form FactorDesktop
