Injector Planet POE-161: IEEE 802.3at Gigabit High Power over Ethernet Injector (10/100/1000Mbps, Mid-Span, 30 Watts)

Danh mục:

Mô tả

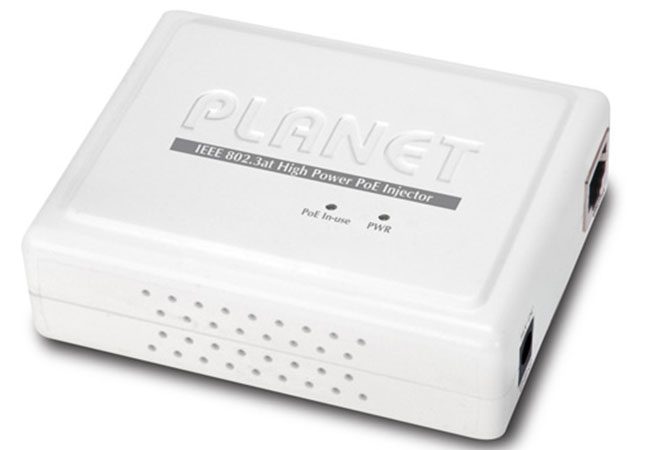

Bộ cấp nguồn Power Injector Planet POE-161

Hardware Specifications
Hardware Versionversion 2
Interface“Data” Input Port:1 x RJ-45 STP
“PoE (Data+Power)” Output Port:1 x RJ-45 STP
DC 56V Input Power Socket:1
LED IndicatorSystem: Power x 1 (Green)
PoE Port: PoE in Use x 1 (Green)
Network Cable10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)95 x 70 x 25 mm
Unit Input VoltageDC 56V, 0.53A
Power Requirements100-240V AC, 50/60Hz
Power Consumption30 watts (max).
Number of devices can be powered1
Power over Ethernet
PoE StandardIEEE 802.3at Gigabit Power over Ethernet standard / Mid-Span PSE
PoE Power OutputDC 56V / 30 watts
PoE Power supply TypeMid-Span
Power Pin Assignment4/5(+), 7/8(-)
Standards Conformance
Standards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Humidity5 ~ 95% (non-condensing)
