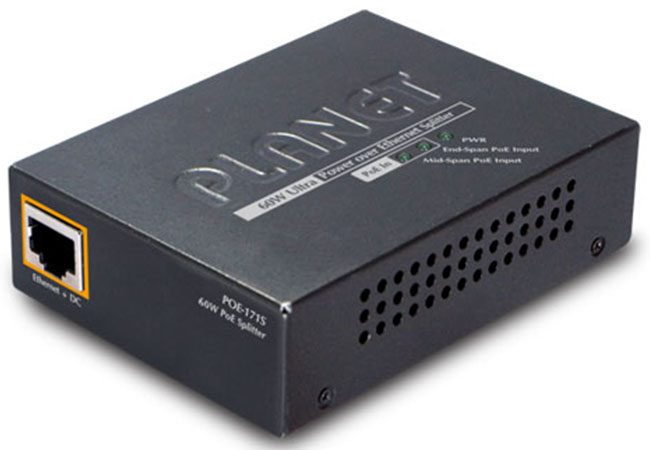

Injector Planet POE-171S: Single-Port 10/100/1000Mbps Ultra PoE Splitter (12V/19V/24V)

Danh mục:

Mô tả

Bộ cấp nguồn Power Injector Planet POE-171S

ProductPOE-171S
Hardware Specifications
InterfaceInput Port:
■ 1 x RJ-45 STP
■ PoE (Data + Power) In
Output Port
■ 1 x RJ-45 STP
■ Data Out
DC Socket
■ DC Out
DIP-Switch
■ 12V DC/19V DC/24V DC output voltage
LED IndicatorSystem: Power x 1 (Green)
Network CableUltra PoE (60W):  10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft)
802.3af / at PoE (15W / 30W):  10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft)
Data Rate10/100/1000Mbps
Dimensions (W x D x H)95 x 70 x 26 mm
Weight300g
Power Requirements52 ~ 56V DC
Power Consumption50 watts (maximum)
Operating Temperature0 ~ 50 degrees C
Storage Temperature-10 ~ 70 degrees C
Humidity5 ~ 95% (Non-condensing)
Power over Ethernet
PoE StandardIEEE 802.3at Power over Ethernet Plus
Power OutputDC 12V/19V/24V by DIP switch control
DC Plug connectors (Diameter)2 external female plug cables:
■ 5.5/2.5mm to 5.5/2.5mm
■ 5.5/2.5mm to 5.5/2.1mm
PoE Power Supply TypeEnd-Span + Mid-Span
Power Pin AssignmentPair 1: 1/2(-), 3/6(+)
Pair 2: 4/5(+), 7/8(-)
Standards Conformance
Standards ComplianceIEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3at High Power over Ethernet
IEEE 802.3af Power over Ethernet
