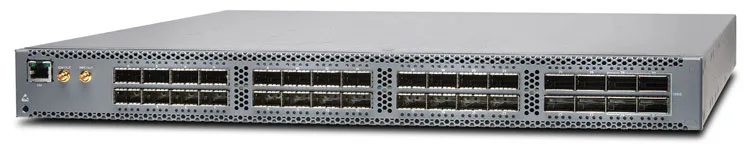

Thiết bị mạng Switch Juniper QFX5110-32Q
Interface Options |
• QFX5110-32Q-AFO/AFI: |
– 1GbE SFP: N/A |
– 10GbE QSFP+: 96 (with breakout cable) |
– 40GbE QSFP+: 32 |
– 100GbE QSFP28: 4 |
• Each QSFP+ port can be configured as a 4 x 10GbE |
interface or as a 40 Gbps port |
• Each QSFP28 port can be configured as a 4 x 10GbE |
interface a 40 Gbps port or as a 100 Gbps port |
• 1 USB 2.0 port |
• 1 RS-232 console port |
• 2 management ports: 2x SFP fiber ports or 1x RJ-45 and 1x |
copper SFP ports |
• Supported transceiver and direct attach cable |
• SFP+ 10GbE optical modules |
• SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m |
active twinax copper |
• SFP GbE optical and copper module |
• QSFP+ DAC cables: 1/3/5 m twinax copper and 7/10 m |
active twinax copper |
• QSFP+ AOC cables: 1/3/5/7/10/15/20/30 m cable |
• QSFP+ Optics: SR4, LX4, ESR4, IR, LR4 |
• QSFP+ to SFP+ 10GbE direct attach breakout copper |
(1/3/10 m twinax copper and 5/7 m active twinax copper |
cable) |
• QSFP28 Optics: SR4, CWDM4, LR4 |
• QSFP28 AOC: 10 m cable |
Rack Installation Kit |
• Versatile four post mounting options for 19-in server rack or |
datacom rack |
Airflow |
• Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow |
• Redundant variable-speed fans to reduce power draw |
Power Supply and Fan Modules |
• Dual redundant (1+1) and hot-pluggable power supplies |
• 110-240 V single phase AC power |
• -36 to -72 V DC power |
• Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow |
Performance Scale (Unidimensional) |
• MAC addresses per system: 288,000 |
• VLAN IDs: 4,093 |
• Number of link aggregation groups (LAGs): 104 |
• Number of ports per LAG: 32 |
• Firewall filters |
– Ingress filters: 6,142 |
– Egress filters: 1,022 |
• IPv4 unicast routes: 128,000 prefixes; 208,000 host routes; |
64 ECMP paths |
• IPv4 multicast routes: 104,000 |
• IPv6 multicast routes: 52,000 |
• IPv6 unicast routes: 84,000 prefixes |
• ARP entries: 48,000 |
• Jumbo frame: 9,216 bytes |
• Spanning Tree Protocol (STP) |
– Multiple Spanning Tree Protocol (MSTP) Instances: 64 |
– VLAN Spanning Tree Protocol (VSTP) Instances: 253 |
• Traffic mirroring |
– Mirroring destination ports per switch: 4 |
– Maximum number of mirroring sessions: 4 |
– Mirroring destination VLANs per switch: 4 |
