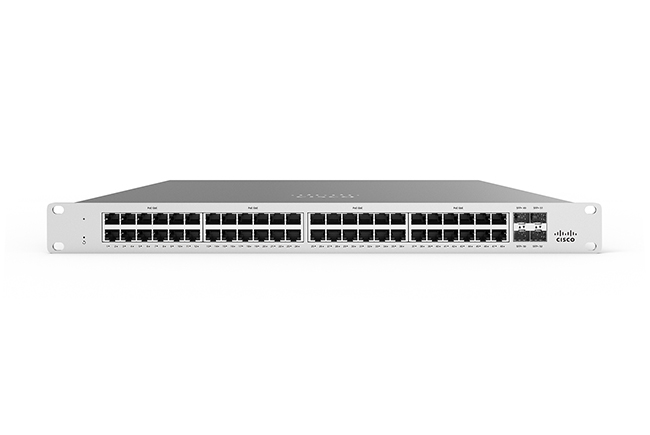

Meraki MS125-48LP-HW

Meraki MS125-48LP-HW

MS125-48LP-HW Meraki MS125-48LP 10G L2 Cld-Mngd 48x GigE 370W PoE Switch. Meraki MS125-48LP Enterprise License and Support: LIC-MS125-48LP-1YR, LIC-MS125-48LP-3YR, LIC-MS125-48LP-5YR

Danh mục:

Mô tả

Thiết bị mạng Switch Meraki MS125-48LP-HW

Mã sản phẩm MS125-48LP-HW
Deployment typeSmall branch deployments
Interface48 x 10/100/1000BASE-T Ethernet RJ45 PoE+ 370W with auto negotiation and crossover detection (auto-MDIX crossover)
4 x 10G SFP+ uplink
RJ45 Management port
Switching Capacity176 Gbps
Forwarding rate130 mpps
Jumbo frame support9578 byte ethernet frame
Power configurationFixed internal
Power Supply/Model NumberPower input: 100 – 240 VAC, 47-63 Hz
Available PoE/PoE+ Power370 W
Idle / Full Load Power22 / 42 W
Routing capabilitiesDHCP Relay
Switching capabilitiesLayer 2
DHCP Relay
802.1X Authentication
DHCP Snooping
STP Enhancements
IPv4 and IPv6 ACLs
Cloud managementEmail alerts for switch management
Remote troubleshooting tools
Manage ports from a GUI-based dashboard
Zero-touch provisioning
Per-port and per-client usage statistics
Secure, user-scheduled firmware updates
Physical Dimensions (H x W x D)  1.73” x 17.32” x 13.39” (4.40 x 44 x 34cm)
Weight  11.9 lb (5.4 kg)
EnvironmentOperating temperature: 0 °C to 45 °C
Humidity: 5 to 95% non-condensing
MTBF287,429
RegulatoryCSA-US (US, Canada)
FCC (USA)
IC (Canada)
CE (Europe)
RCM (Australia/New Zealand)
RoHS
