Meraki MS390-48-HW

Meraki MS390-48-HW

Switch MS390-48-HW Meraki MS390 48GE L3 Switch. Meraki MS390-48 Enterprise License and Support: LIC-MS390-48-1YR, LIC-MS390-48-3YR, LIC-MS390-48-5YR.

Danh mục:

Mô tả

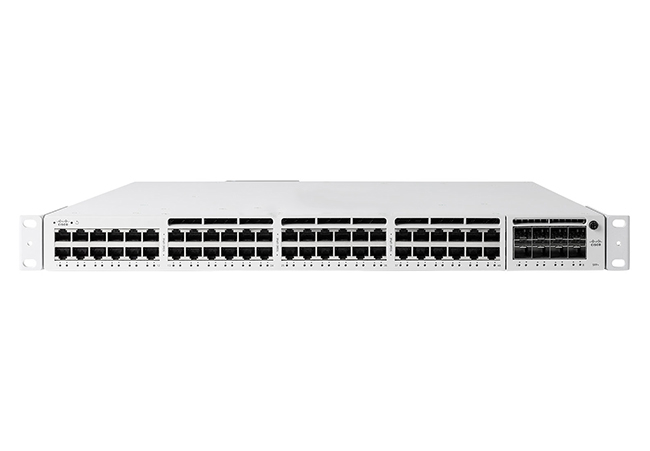

Thiết bị mạng Switch Cisco Meraki MS390-48-HW

Mã sản phẩm MS390-48-HW
Interface• 48 × 100/1/2.5/5/10G Ethernet (RJ45)
• 4/8 × 10G SFP+ uplink modules
• 2 × 40G QSFP uplink modules
• Auto-negotiation and crossover detection
• 2 × dedicated stacking ports
Switching Capacity256 Gbps
Stacking Bandwidth480 Gbps
Forwarding rate190.48 Mpps
Physical Dimensions (H x W x D)1.73” x 17.5” x17.7”
(4.4 x 44.5 x 44.9cm)
Weight16.43 lb (7.45 kg)
Idle / Full Load Power83.9 / 109.9 W
Available PoE W/ Primary PSn/a
Power Supply ConfigurationHot-swappable
Management– Managed via the Web with the Meraki cloud management platform
– Integrated with Meraki Wireless and complete portfolio of IT products and solutions
– Zero-touch remote provisioning (no staging needed)
– Detailed historical per-port and per-client usage statistics
– Operating system, device, and hostname fingerprinting
– SNMP and SYSLOG support for integration with other network management solutions
– Automatic firmware upgrades with scheduling control
Remote DiagnosticsEmail, SMS and Mobile push notification alerts 1
Ping, traceroute, cable testing, and link failure detection with alerting
Remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking– Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities– 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
– 802.1Q VLAN and trunking support for up to 4,094 VLANs
– 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
– STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
– Broadcast storm control
– 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
– 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
– Port mirroring
– IGMP snooping for multicast filtering
– MAC forwarding entries: 32K
Layer 3 capabilities – Static routing, OSFPv2
– Multicast routing
– Warm Spare (VRRP) 2
– DHCP Relay, DHCP Server
Mounting– 1U rack-mountable
– 2/4-post mounting options available
Performance– Switching capacity: 256 Gbps
– Forwarding rate: 190 Mpps with standard packet size
– Jumbo frame (9600 byte Ethernet frame)
– Flow control
Power– Power input: 100-240V~, 50-60Hz
– Power consumption: 83.9 / 109.9 W
EnvironmentOperating temp: 0°C to 45°C, Humidity: 5 to 95% non-condensing
WarrantyFull lifetime hardware warranty with next-day advanced replacement included
