Meraki MS225-24P-HW

Meraki MS225-24P-HW

Switch MS225-24P-HW Meraki MS225-24P L2 Stck Cld-Mngd 24x GigE 370W PoE Switch. Meraki MS225-24P Enterprise License and Support: LIC-MS225-24P-1YR, LIC-MS225-24P-3YR, LIC-MS225-24P-5YR.

Danh mục:

Mô tả

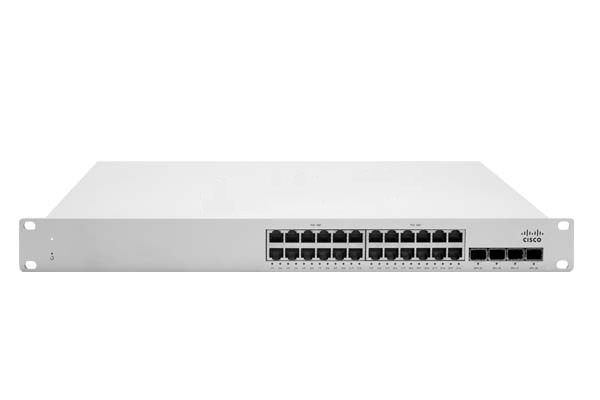

Thiết bị mạng Switch Cisco Meraki MS225-24P-HW

Mã sản phẩmMS225-24P-HW
Interface• 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
• 4 x SFP+ 10GbE uplink
• 2 x stacking ports
• RJ45 Management port
Switching Capacity128 Gbps
Stacking Bandwidth80 Gbps
Physical Dimensions (H x W x D)1.72 x 19.08 x 9.84”
(4.38 x 48.46 x 25cm)
Weight8.18 lb (3.71 kg)
Idle / Full Load Power21 / 448 W
Power Supply ConfigurationHot-swappable
Supported Power SupplyFixed internal
Management– Managed via the Web with the Meraki cloud management platform
– Integrated with Meraki Wireless and complete portfolio of IT products and solutions
– Zero-touch remote provisioning (no staging needed)
– Detailed historical per-port and per-client usage statistics
– Operating system, device, and hostname fingerprinting
– SNMP and SYSLOG support for integration with other network management solutions
– Automatic firmware upgrades with scheduling control
Remote DiagnosticsEmail, SMS and Mobile push notification alerts 1
Ping, traceroute, cable testing, and link failure detection with alerting
Remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking– Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
– Physically stack of up to 8 switches with 80 Gbps of stacking bandwidth
– Flexible stacking on all interfaces and SFP+/QSFP+ accessory types, up to 8 switches
Ethernet Switching Capabilities– 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
– 802.1Q VLAN and trunking support for up to 4,094 VLANs
– 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
– STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
– Broadcast storm control
– 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
– 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
– Port mirroring
– IGMP snooping for multicast filtering
MAC forwarding entries: 16K on 24-port models, 32K on 48-port models
Layer 3 capabilities – Static routing, OSFPv2
– Multicast routing
– Warm Spare (VRRP) 2
– DHCP Relay, DHCP Server
Mounting– Rack-mountable with included rack mount hardware
– Front-to-back airflow
Performance– Switching capacity: 128Gbps on 24-port models, 176Gbps on 48-port models
– Forwarding rate: 95.24mpps on 24-port models, 127.98mpps on 48-port models
– Jumbo frame support (9578 byte Ethernet frame)
Power– Power input: 100 – 240 VAC, 47-63 Hz
– Power consumption: 15 – 882W
EnvironmentOperating temp: 0°C to 40°C, Humidity: 5 to 95% non-condensing
WarrantyFull lifetime hardware warranty with next-day advanced replacement included
