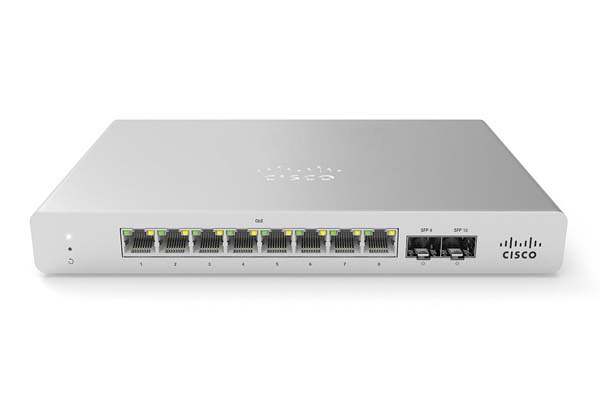

Meraki MS120-8FP-HW

Meraki MS120-8FP-HW

Switch MS120-8FP-HW Meraki MS120-8FP 1G L2 Cloud Managed 8x GigE 124W PoE Switch. Meraki MS120-8FP Enterprise License and Support: LIC-MS120-8FP-1YR, LIC-MS120-8FP-3YR, LIC-MS120-8FP-5YR.

Danh mục:

Mô tả

Thiết bị mạng Switch Cisco Meraki MS120-8FP-HW

Mã sản phẩm MS120-8FP-HW
Interface• 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
• 2 x 1G SFP uplink
Switching Capacity20 Gbps
Physical Dimensions (H x W x D)1.75 x 8.97 x 8.58”
(4.4 x 22.7 x 23cm)
Weight3.42 lb (1.55 kg)
Idle / Full Load Power9 / 162 W
Power Supply ConfigurationFixed interna
Supported Power SupplyDC 56V/2.7A, 150W
Management– Managed via the Web with the Meraki cloud management platform
– Integrated with Meraki Wireless and complete portfolio of IT products and solutions
– Zero-touch remote provisioning (no staging needed)
– Detailed historical per-port and per-client usage statistics
– Operating system, device, and hostname fingerprinting
– SNMP and SYSLOG support for integration with other network management solutions
– Automatic firmware upgrades with scheduling control
Remote DiagnosticsEmail, SMS and Mobile push notification alerts 1
Ping, traceroute, cable testing, and link failure detection with alerting
Remote packet capture
Dynamic and interactive network discovery and topology
Combined event and configuration change logs with instant search
Stacking– Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
– Physically stack of up to 8 switches with 80 Gbps of stacking bandwidth
– Flexible stacking on all interfaces and SFP+/QSFP+ accessory types, up to 8 switches
Ethernet Switching Capabilities– 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
– 802.1Q VLAN and trunking support for up to 4,094 VLANs
– 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
– STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
– Broadcast storm control
– 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
– 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
– Port mirroring
– IGMP snooping for multicast filtering
– MAC forwarding entries: 16K for all models
Layer 3 capabilities – Static routing, OSFPv2
– Multicast routing
– Warm Spare (VRRP) 2
– DHCP Relay, DHCP Server
Mounting– Rack-mountable with included rack mount hardware
– Front-to-back airflow
Performance– Switching capacity: 20Gbps Forwarding rate: 14.88mpps with standard packet size
– Jumbo frame support (9578 byte ethernet frame)
– Flow control suppor
Power– Power input: 100 – 240 VAC, 47-63 Hz
– Power consumption: 6-162 W
EnvironmentOperating temp: 0°C to 40°C, Humidity: 5 to 95% non-condensing
WarrantyFull lifetime hardware warranty with next-day advanced replacement included
