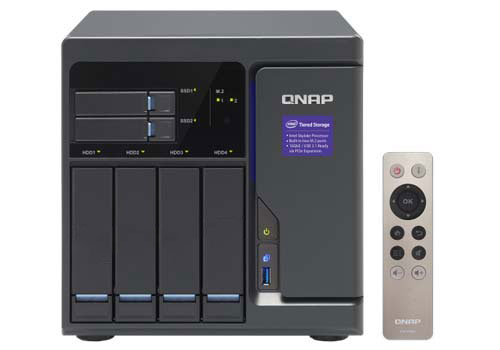

QNAP TVS-682

QNAP TVS-682

The TVS-682 features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards

Category:

Description

Thiết bị lưu trữ QNAP TVS-682

Ordering P/NTVS-682-PT-8G
TVS-682-i3-8G
CPUTVS-682-PT-8G: Intel® Pentium® G4400 3.3 GHz dual-core processor
TVS-682-i3-8G: Intel® Core™ i3-6100 3.7 GHz dual-core processor
System memoryTotal DIMM slots: 4
Maximum memory: 64 GB (16 GB x4)
Memory modules pre-installed: 8 GB DDR4 RAM (4 GB x 2)
Note: The pre-installed memory modules need to be replaced when expanding the memory to over 24 GB.
Flash Memory512MB DOM
M.2 Slot2 x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
Note:
1. The M.2 SSD is not included as standard.
2. M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
Hard Drive Tray2 x 2.5” SSD
4 x 2.5”/3.5” hard drive or SSD
Drive InterfaceSATA 6Gbps/3Gbps; Hot-swappable
USB1 x USB 3.0 port (Front)
4 x USB 3.0 port (Rear)
LAN Port4 x GbE port (10GbE and 40GbE are supported with the purchase and installation of compatible network adapters)
Note:
1. For a list of compatible network adapters, please visit the Compatibility List.
2. For instructions on how to install network adapters, please refer to Chapter 6 of the QNAP NAS Hardware Manual.
HDMI Output3
Audio InputAudio In: 2 x 6.3mm MIC In
Audio Output2 x built-in speaker, 1 x 3.5mm Line-out jack
Note: Only one of the above audio output ports can work at a time. If a speaker is connected, the sound will output through the speaker.
LED IndicatorsSystem status, 2.5” SSD, M.2 SSD, 3.5” HDD
ButtonsSystem: Power button, Reset button, USB one-touch-backup button
System WarningBuzzer
Form FactorTower
Dimensions231.9 (H) x 224.9 (W) x 319.8 (D) mm
9.1 (H) x 8.9 (W) x 12.6 (D) inch
WeightNet (NAS only): 7.7 kg/ 16.96lb
Gross (with packing and accessories): 9.5 kg/ 20.94lb
Sound Level (dB)*Sound pressure (LpAm) (bystander position): 20.5 dB
(with 4 x Seagate ST2000VN000-1HJ164 hard drive installed)
Temperature0-40˚C
Relative Humidity5~95% non-condensing, wet bulb: 27˚C
Power SupplyInput: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
PCIe Slot2 (1* PCIe Gen3 x16; 1* PCIe Gen3 x4)
FanSystem: 1 x 8 cm cooling fan
CPU: 1 x 9 cm fan
