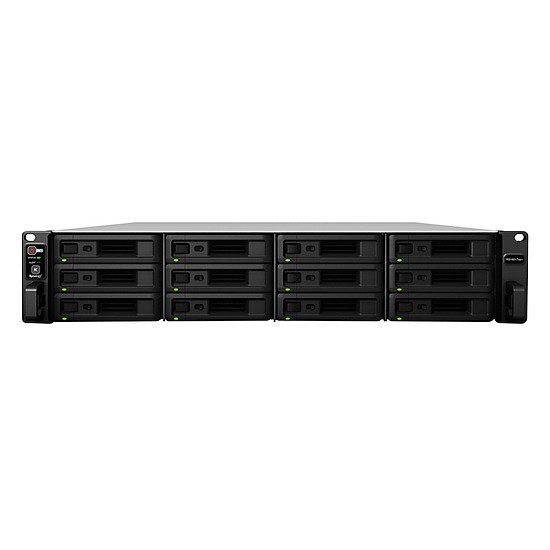

Synology RS18017xs+

Synology RS18017xs+

NAS Synology RS18017xs+ 12-bay RackStation (up to 180-bay), Six Core 2.2 GHz (turbo to 2.7GHz), 16GB RAM (up to 128GB), 2x10GbE Base T, Redundant power

Danh mục:

Mô tả

Thiết bị lưu trữ NAS Synology RS18017xs+

Hardware Specifications
CPU
CPU ModelIntel Xeon D-1531
CPU Architecture64-bit
CPU Frequency6-Core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)Yes
Memory*
System Memory16 GB DDR4 ECC RDIMM
Memory Module Pre-installed16 GB (16 GB x 1)
Total Memory Slots4
Memory Expandable up to128 GB (32 GB x 4)
Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)10,000
Storage
Drive Bays12
Maximum Drive Bays with Expansion Unit96 (RX1217sas) / 180 (RX2417sas)
Compatible Drive Type*
  • 3.5″ SAS HDD
  • 2.5″ SAS HDD
  • 2.5″ SAS SSD
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Internal Raw Capacity192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)
Maximum Single Volume Size*
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable DriveYes
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
External Ports
RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port2 (with Link Aggregation / Failover support)
USB 3.0 Port2
Expansion Port1
PCIe
PCIe Expansion2 x Gen3 x8 slots (x8 link)
Add-In-Card Support
  • PCIe Network Interface Card
  • M2D18 – Dual M.2 SATA SSD adapter card for SSD cache
Optional Accessories
  • Surveillance Device License Pack
  • RAMRG2133DDR4-32G DDR4 ECC RDIMM
  • RAMRG2133DDR4-16G DDR4 ECC RDIMM
  • Expansion Unit: RX2417sas X 7
  • Expansion Unit: RX1217sas X 7
  • Synology Ethernet Adapter E10G17-F2
  • Synology Ethernet Adapter E10G18-T1
  • Synology Ethernet Adapter E10G18-T2
  • Synology M2D18 M.2 SSD adapter card
  • Synology Rail Kit Sliding – RKS1317
  • VS360HD
  • VS960HD
