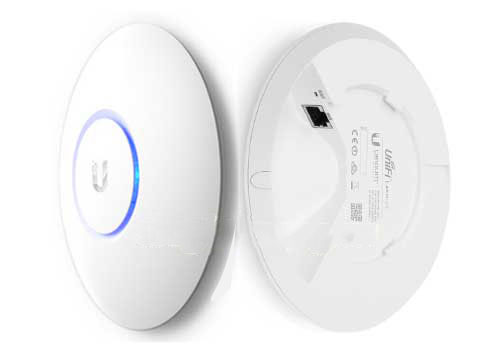

Ubiquiti Unifi UAP-AC-LITE

Bộ phát sóng Wifi Ubiquiti Unifi UAP-AC-LITE

Model	UAP-AC-LITE
Environment	Indoor
2.4 GHz Radio Rate	300 Mbps
2.4 GHz MIMO	2×2
5 GHz Radio Rate	867 Mbps
5 GHz MIMO	2×2
Dimensions	160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24″)
Weight	170 g, 185 g With Mounting Kits
Networking Interface	10/100/1000 Ethernet Ports
Buttons	Reset
Power Method	802.3af/A PoE 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply	24V, 0.5A Gigabit PoE Adapter
Power Save	Supported
Maximum Power Consumption	6.5W
TX Power	2.4 GHz: 20 dBm 5 GHz: 20 dBm
Antennas	(2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards	802.11 a/b/g/n/ac
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID	8 per Radio
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-10 to 70° C (14 to 158° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Advanced Traffic Management
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	250+
Supported Data Rates (Mbps)
Standard	Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
