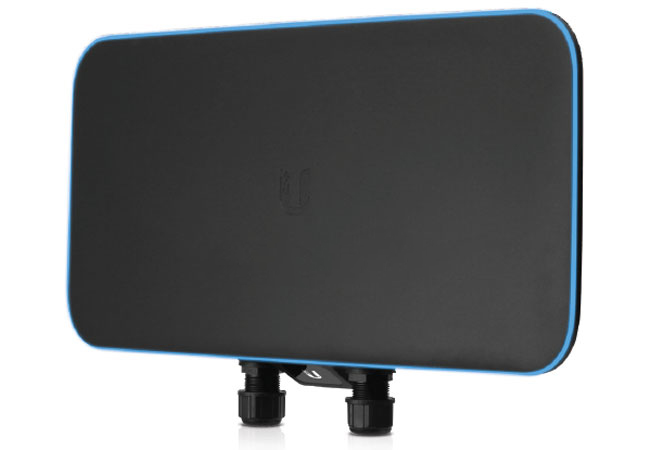

Ubiquiti UniFi UWB-XG-BK

Ubiquiti UniFi UWB-XG-BK

Ubiquiti UniFi WiFi UWB-XG-BK BaseStation XG Quad-Radio 802.11ac Wave 2 Access Point, Support 1500 User

Danh mục:

Mô tả

Bộ phát sóng Wifi Ubiquiti Unifi UWB‑XG-BK

ModelUWB-XG-BK
Dimensions471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713″)
Weight (Without Mount)3.2 kg (7.055 lb)
Networking Interface1 Port 10/100/1000 RJ45 Ethernet Port
1 Port 1/10 Gbps ICM Ethernet Port
ButtonsReset
LedRGB, Software-Controllable
Power Method802.3bt PoE
Power Supply50VDC, 1.2A Gigabit PoE
Power SaveSupported
BeamformingSupported
Maximum Power Consumption31W
Supported Voltage Range44 to 57VDC
Max TX Power25 dBm
MIMO(3) 4 x 4
Operating Frequency5 GHz
5 GHz Tri-Bandyes
5 GHz Radio Rate(3) 1733 Mbps
EnvironmentIndoor
AntennasIntegrated Dual-Mode Antenna Array
Antenna GainSmall Cell: 15 dBi
Large Cell: 10 dBi
Antenna BeamwidthSmall Cell: 50°
Large Cell: 90°
Wi-Fi Standards802.11 a/n/ac/ac-wave2
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
MountingVESA-Compatible Mount, Pole/Wall (Brackets Included)
Operating Temperature-10 to 70° C (14 to 158° F)
Operating Humidity5 to 95% Noncondensing
Dust and Water ResistanceIP67
CertificationsCE, FCC, IC
Advanced Traffic Management
VLAN802.1Q
Advanced QoSPer-User Rate Limiting
Guest Traffic IsolationSupported
WMMVoice, Video, Best Effort, and Background
Concurrent Clients1500
Supported Data Rates (Mbps)
StandardData Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
