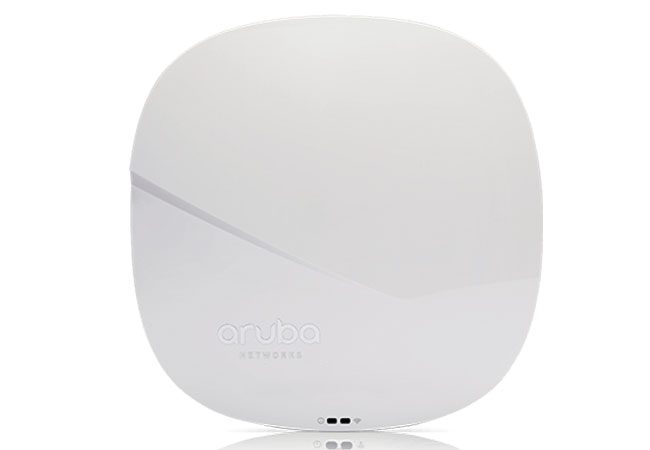

Aruba AP-325 (JW186A)

Aruba AP-325 (JW186A)

JW186A – Wifi Aruba AP-325 802.11n/ac 4×4:4 MU-MIMO Dual Radio Integrated Antenna AP. AP-325 (controller-managed): 5 GHz (1,733 Mbps max rate) and 2.4 GHz (600 Mbps max rate) radios, each with 4×4 MIMO support and a total of eight integrated omni-directional downtilt antennas.

Danh mục:

Mô tả

Thiết bị phát sóng Wifi Aruba AP-325 (JW186A)

Wireless Radio Specifications

  • AP type: Indoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n 4×4 MIMO.
  • Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1).
  • Four spatial stream SU-MIMO for up to 1,733 Mbps wireless data rate to a single client device.
  • Three spatial stream MU-MIMO for up to 1,300 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously.
  • Support for up to 255 associated client devices per radio, and up to 16 BSSIDs per radio.
  • Supported frequency bands (country-specific restrictions apply):
    • 2.400 to 2.4835 GHz
    • 5.150 to 5.250 GHz
    • 5.250 to 5.350 GHz
    • 5.470 to 5.725 GHz
    • 5.725 to 5.850 GHz
  • Supported radio technologies:
    • 802.11b: Direct-sequence spread-spectrum (DSSS)
    • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • Supported modulation types:
    • 802.11b: BPSK, QPSK, CCK
    • 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
  • Supported data rates (Mbps):
    • 802.11b: 1, 2, 5.5, 11
    • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
    • 802.11n: 6.5 to 450 (MCS0 to MCS23)
    • 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

WiFi Antennas

  • AP-325/IAP-325:
    • Eight integrated downtilt omni-directional antennas for 4×4 MIMO with maximum antenna gain of 3.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle for maximum gain is ~ 30 degrees.

Other Interfaces

  • Two 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
    • Auto-sensing link speed and MDI/MDX
    • Load balancing support to achieve platform throughput greater than 1 Gbps
    • 802.3az Energy Efficient Ethernet (EEE)
    • PoE-PD: 48 Vdc (nominal) 802.3af or 802.3at PoE
  • DC power interface, accepts 2.1/5.5-mm center-positive circular plug with 9.5-mm length
  • USB 2.0 host interface (Type A connector)

Power Sources and Consumption

  • Maximum (worst-case) power consumption: 20W (802.3at PoE), 13.5W (802.3af PoE) or 18.5W (DC)
    • Excludes power consumed by external USB device (and internal overhead); this could add up to 6W (POE) or 5.5W (DC) for 5W/1A USB device
  • Maximum (worst-case) power consumption in idle mode: 8W (PoE) or 7W (DC).

Mechanical

  • Dimensions/weight (unit, excluding mount accessories):
    • 203 mm (W) x 203 mm (D) x 57 mm (H), 8.0” (W) x 8.0” (D) x 2.2” (H)
    • 950 g/34 oz
  • Dimensions/weight (shipping):
    • 315 mm (W) x 265 mm (D) x 100 mm (H), 12.4” (W) x 10.4” (D) x 3.9” (H)
    • 1,350 g/48 oz

Warranty

  • Aruba limited lifetime warranty
