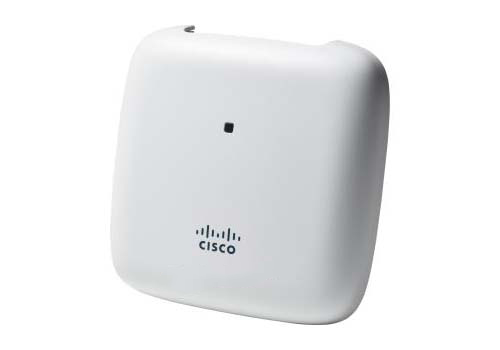

Cisco AIR-AP1815I-S-K9

Cisco AIR-AP1815I-S-K9

Cisco AIR-AP1815I-S-K9 Integrated antennas ● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 4 dBi Interfaces ● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ● Management console port (RJ-45) Indicators ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Danh mục:

Mô tả

Thiết bị mạng Wfi Cisco AIR-AP1815I-S-K9

Part Number AIR-AP1815I-S-K9
Integrated antennas –  2.4 GHz, gain 2 dBi

–  5 GHz, gain 4 dBi

Interfaces –  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)

–  Management console port (RJ-45)

Indicators –  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H) –  Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight –  Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental –  Operating

◦   Temperature: 32° to 104°F (0° to 40°C)

◦   Humidity: 10% to 90% (noncondensing)

◦   Max. altitude: 9843 ft (3000 m) @ 40°C

–  Nonoperating (storage and transportation)

◦   Temperature: -22° to 158°F (-30° to 70°C)

◦   Humidity: 10% to 90% (noncondensing)

◦   Max. altitude: 15,000 ft (4500 m) @ 25°C

System –  1 GB DRAM

–  256 MB flash

–  710 MHz quad core

Powering options –  802.3af/at Ethernet switch

–  Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

Power draw –  8.3W (maximum, on PoE)
Physical security –  Torx security screw, included with the access point
Accessories –  Mounting bracket: AIR-AP-BRACKET8= (available as spare)

–  Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports

Compliance –  Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1

–  Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385

–  IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac

–  Security: 802.11i, WPA2, WPA, 802.1X, AES

–  Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)

–  Multimedia: Wi-Fi Multimedia (WMM)

–  Other: FCC Bulletin OET-65C, RSS-102

Authentication and security –  Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

–  802.1X, RADIUS authentication, authorization and accounting (AAA)

–  802.11r

–  802.11i

Software –  Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later

–  Cisco Mobility Express

Maximum clients –  Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac –  2×2 single-user/multiuser MIMO with two spatial streams

–  Maximal ratio combining (MRC)

–  20-, 40-, and 80-MHz channels

–  PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

–  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

–  802.11 Dynamic Frequency Selection (DFS)

–  Cyclic shift diversity (CSD) support

Ethernet ports –  Authentication with 802.1X or MAC filtered

–  Dynamic VLAN or per port

–  Traffic locally switched or tunneled back to wireless LAN controller
