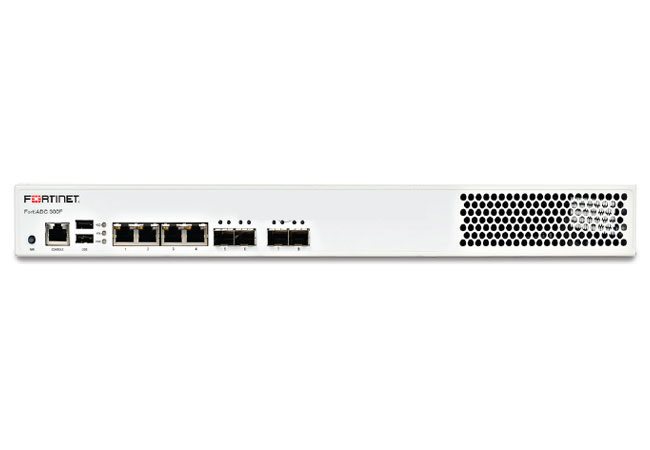

FortiADC 300F (FAD-300F)

FortiADC 300F (FAD-300F)

FAD-300F – Load Balancing FortiNet FortiADC 300F, 4x GE RJ45 ports, 4x GE SFP ports, 2x GE management ports, 1x 128 GB SSD storage.

Danh mục:

Mô tả

Thiết bị cân bằng tải FortiNet FortiADC 300F

Mã sản phẩmFAD-300F
L4/L7 Throughput8 Gbps
L4 CPS300,000
L4 HTTP RPS1M
Maximum L4 Concurrent Connection12M
L7 CPS (1:1)100,000
SSL CPS/TPS (1:1) 2K keys4,000
SSL Bulk Encryption Throughput3 Gbps
Compression Throughput6 Gbps
SSL Acceleration TechnologySoftware
Memory16 GB
Virtual Domains10
Network Interfaces4x GE RJ45, 4x GE SFP
10/100/1000 Management Interface
Storage128 GB SSD
ManagementHTTPS, SSH CLI, Direct Console DB9 CLI, SNMP
Power Supply300 W Single PSU
Environment
Form Factor1U Appliance
Input Voltage100–240V AC, 50–60 Hz, 5-3A
Power Consumption (Average / Maximum)90 W / 99 W
Maximum Current100-240V AC / 6-3A, 50/60 Hz
Heat Dissipation337.8 BTU/h
Operating Temperature32–104°F (0–40°C)
Storage Temperature-13–167°F (-25–75°C)
Humidity5–95% non-condensing
Compliance
Regulatory ComplianceCE, FCC, RCM, VCCI, BSMI
SafetyUL, CB, IEC
Dimensions
Height x Width x Length (in)1.73 x 17.24 x 16.38
Height x Width x Length (mm)44 x 438 x 416
Weight20 lbs (9.07 kg)
