Juniper QFX5100-48T

Juniper QFX5100-48T

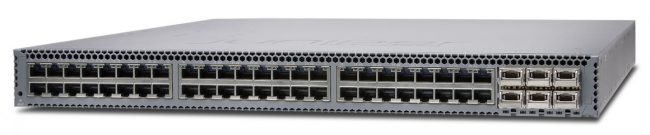

Switch Juniper QFX5100-48T – Compact 1 U 10GbE data center access switch with 48 tri-speed (10GbE/1GbE/100 Mbps) RJ-45 ports and six QSFP+ ports with an aggregate throughput of 1.44 Tbps or 1.08 Bpps per switch.
Danh mục:

Mô tả

Thiết bị mạng Switch Juniper QFX5100-48T

Dimensions (W x H x D)QFX5100-48T: 17.4 x 1.72 x 21.5 in (44.1 x 4.4 x 54.6 cm); 1 U
Power Options100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
System ThroughputQFX5100-48T: 1.44 Tbps
Form FactorFixed-configuration platform
Data Rate (switching capacity)QFX5100-48T: 1.08 Bpps
Port DensitiesQFX5100-48T: 48 tri-speed (100 Mbps/1GbE/10GbE); 6 40GbE
Maximum 10GbE DensityN/A
Maximum 25GbE/50GbE DensitiesN/A
Maximum 40GbE DensityQFX5100-48T: 6 ports
Maximum 100GbE DensityN/A
ResiliencyDual hot-swappable AC or DC power supplies for 1+1 redundancy.
Hot-swappable fan trays.
Power ConsumptionQFX5100-48T: 335W
Overlay ServicesContrail Layer 3 gateway (roadmap)
VMware NSX Layer 2 gateway (roadmap)
Traffic MonitoringPort-based
LAG port
VLAN-based
Access control list (ACL)-based
Mirror to local and remote destinations (Layer 2 over VLAN)
QoS Queues / Port12 (8 unicast; 4 multicast)
MAC Addresses288,000
Jumbo Frames9,216 Bytes
IPv4 Hosts144,000
IPv4 Unicast Routes208,000
IPv4 Multicast Routes104,000
IPv6 Hosts72,000
IPv6 Unicast Routes104,000
IPv6 Multicast Routes52,000
Number of VLANs4,096
ARP Entries48,000
