Juniper QFX5100-96S

Juniper QFX5100-96S

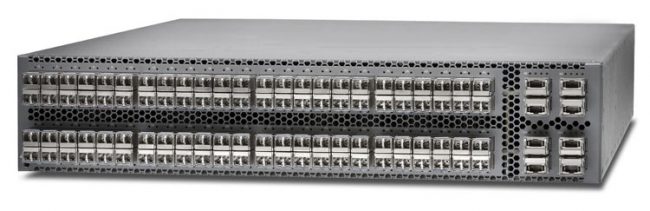

QFX5100-96S: Compact 2 U high-density 10GbE aggregaton switch with 96 SFP+/SFP and eight QSFP+ ports with an aggregate throughput of 2.56 Tbps or 1.44 Bpps per switch.
Danh mục:

Mô tả

Thiết bị mạng Switch Juniper QFX5100-96S

Switching Capacity2.56 Tbps/1.44 Bpps
Weight32.5 lb (14.74 kg)
Power Consumption263 W
Interface Options– 1GbE SFP: 96 (48 Copper 1GbE)
– 10GbE SFP+: 104 (with breakout cable)
– 40GbE QSFP+: 8
Power Supply and Fan Modules• Dual redundant (1+1) and hot-pluggable power supplies
• 110-240 V single phase AC power
• -36 to -72 V DC power
• Redundant (N+1) and hot-pluggable fan modules for frontto-back and back-to-front airflow
Performance Scale (Unidimensional)• MAC addresses per system: 288,0003
• VLAN IDs: 4,096
• Number of link aggregaton groups (LAGs): 128
• Number of ports per LAG: 32
• Number of FCoE VLANs/FC Virtual Fabrics: 4,095
• Firewall flters: 4000
• IPv4 unicast routes: 128,000 prefxes; 208,000 host
routes; 644 ECMP paths
• IPv4 multcast routes: 104,000
• IPv6 multcast routes: 52,000
• IPv6 unicast routes: 64,000 prefxes
• ARP entries: 48,000
• Jumbo frame: 9,216 bytes
• Spanning Tree Protocol (STP)
– Multple Spanning Tree Protocol (MSTP) instances: 64
– VLAN Spanning Tree Protocol (VSTP) instances: 253
• Trafc mirroring
– Mirroring destnaton ports per switch: 4
– Maximum number of mirroring sessions: 4
– Mirroring destnaton VLANs per switch: 4
