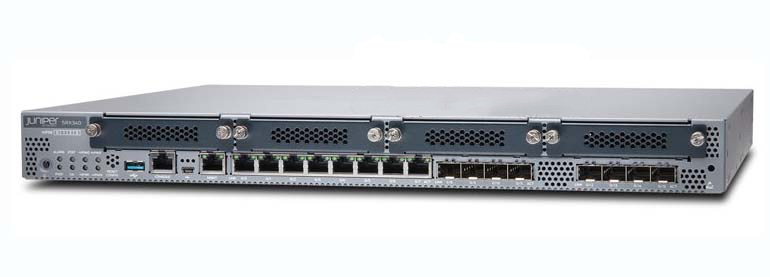

Juniper SRX340-SYS-JE

Juniper SRX340-SYS-JE

Thiết bị Firewall Juniper SRX340-SYS-JE: SRX340 Services Gateway includes hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security)

Danh mục:

Mô tả

Thiết bị Firewall Juniper SRX340-SYS-JE

ModelSRX340
Connectivity
Total onboard ports16x 1GbE
Onboard RJ-45 ports8x 1GbE
Onboard small form-factor pluggable
(SFP) transceiver ports
8x 1GbE
MACsec-capable ports16x1GbE
Out-of-band (OOB) management ports1x1GbE
Mini PIM (WAN) slots4
Console (RJ-45 + miniUSB)1
USB 3.0 ports (type A)1
Optonal PoE+ ports0
Memory and Storage
System memory (RAM)4 GB
Storage (flash)8 GB
SSD slots1
Dimensions and Power
Form factor1 U
Size (WxHxD)17.36 x 1.72 x 14.57 in.
(44.09 x 4.36 x 37.01 cm)
Weight (device and PSU)10.80 lb (4.90 kg)
Redundant PSUNo
Power supplyAC (internal)
DC InputN/A
Maximum PoE powerN/A
Average power consumpton122 W
Airflow/coolingFront to back
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps550
Routing with packet mode (1,518 B packet size in Mbps3,000
Stateful firewall (64 B packet size) in Kpps350
Stateful firewall (1,518 B packet size) in Mbps3,000
IPsec VPN (1,400 B packet size) in Mbps600
Application visibility and control in Mbps1,000
Recommended IPS in Mbps400
Next-generation firewall in Mbps200
Route table size (RIB/FIB) (IPv4 or IPv6)1 million/600,000
Maximum concurrent sessions (IPv4 or IPv6)256,000
Maximum security policies2,000
Connectons per second10,000
NAT rules2,000
MAC table size15,000
IPsec VPN tunnels1,024
Number of remote access uses150
GRE tunnels512
Maximum number of security zones64
Maximum number of virtual routers64
Maximum number of VLANs2,0000
AppID sessions64,000
IPS sessions64,000
URLF sessions64,000
