Juniper SRX4200-SYS-JE-AC

Juniper SRX4200-SYS-JE-AC

Firewall Juniper SRX4200-SYS-JE-AC: SRX4200 Services Gateway includes hardware (8x10GbE, two AC PSUs, four fan trays, cables, and RMK) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security)
Danh mục:

Mô tả

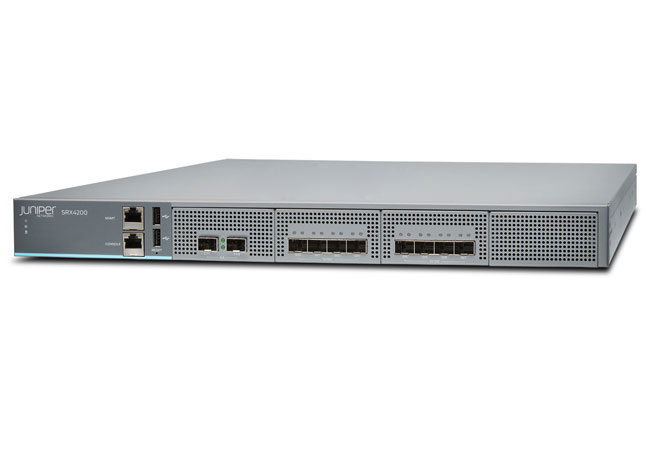

Thiết bị Firewall Juniper SRX4200-SYS-JE-AC

Product Name SRX4200-SYS-JE-AC
Connectivity
Total onboard ports 8x1GbE/10GbE
Onboard small form-factor pluggable plus (SFP+) transceiver ports 8x1GbE/10GbE
Out-of-Band (OOB) management ports 1x1GbE
Dedicated high availability (HA) ports 2x1GbE/10GbE (SFP/SFP+)
Console (RJ-45) 1
USB 2.0 ports (type A) 2
Memory and Storage
System memory (RAM) 64 GB
Secondary storage (SSD) 240 GB with 1+1 RAID
Dimensions and Power
Form factor 1 U
Size (WxHxD) 17.48 x 1.7.x.25 in
(44.39 x 4.31 x 63.5 cm)
Weight (device and PSU) Chassis with two AC power supplies: 29 lb (13.15 kg)
Chassis with two DC power supplies: 28.9 lb (13.06 kg)
Chassis with package for shipping: 47.5 lb (21.54 kg)
Redundant PSU 1+1
Power supply 2x 650 W redundant AC-DC/DC-DC PSU
Average power consumption 200 W
Average heat dissipation 685 BTU / hour
Maximum current consumption 4A (for 110 V AC power)
2A (for 220 V AC power)
9A (for -48 V DC power)
Maximum inrush current 50 A by 1 AC cycle
Acoustic noise level 70 dBA
Airflow/cooling Front to back
Environmental, Compliance, and Safety Certification
Operating temperature 32° to 104° F (0° to 40° C)
Operating humidity 5% to 90% noncondensing
Meantime between failures (MTBF) 12 years (105,120 hours)
FCC classification Class A
RoHS compliance RoHS 2
Performance and Scale
Routing/firewall (64 B packet size) throughput Gbps1 10
Routing/firewall (IMIX packet size) throughput Gbps1 40
Routing/firewall (1,518 B packet size) throughput Gbps1 80
IPsec VPN (IMIX packet size) Gbps1 9.6
IPsec VPN (1,400 B packet size) Gbps1 20
Application visibility and control in Gbps2 35
Recommended IPS in Gbps2 20
Next-generation firewall in Gbps2 15
Connections per second (CPS) 300,000
Maximum security policies 60,000
Maximum concurrent sessions (IPv4 or IPv6) 10 million
Route table size (RIB/FIB) (IPv4 or IPv6) 2 million / 2 million
