Juniper SRX1500-SYS-JE-AC

Juniper SRX1500-SYS-JE-AC

Firewall Juniper SRX1500-SYS-JE-AC: SRX1500 Services Gateway includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, AC PSU, cable and RMK) and Junos Sofware Enhanced (firewall, NAT, IPSec, routing, MPLS, switching and applicaton security)
Danh mục:

Mô tả

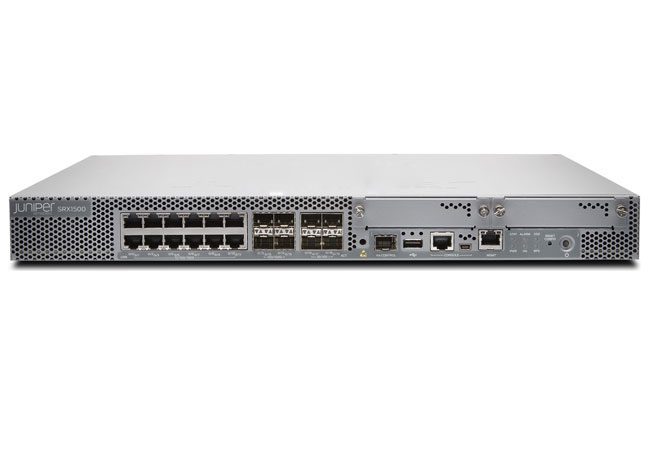

Thiết bị Firewall Juniper SRX1500-SYS-JE-AC

Product NameSRX1500-SYS-JE-AC
Specification
Total onboard ports16x1GbE and 4x10GbE
Onboard RJ-45 ports12x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports4x1GbE
Onboard SFP+ ports4x10GbE
Out-of-Band (OOB) management ports1x1GbE
Dedicated high availability (HA) port1x1GbE (SFP)
PIM slots2
Console (RJ-45 + miniUSB)1
USB 2.0 ports (type A)1
Memory and Storage
System memory (RAM)16 GB
Primary boot storage (mSATA)16 GB
Secondary storage (SSD)100 GB
Dimensions and Power
Form factor1 U
Size (WxHxD)17.5 x 1.75 x 18.2 in (44.45 x 4.44 x 46.22 cm)
Weight (device and PSU)16.1 lb (7.30 kg)
16.1 lb (7.30 kg)1+1
Power supplyAC/DC (external)
Average power consumption150 W
Average heat dissipation512 BTU / hour
Maximum current consumption2.5A (for AC PSU); 6.2A (for DC PSU)
Maximum inrush current50A by 1 AC cycle
Acoustic noise level66.5dBA
Airflow/coolingFront to back
Operating temperature32° to 104° F (0° to 40° C)
Nonoperating temperature4° to 158° F (-20° to 70° C)
Operating humidity10% to 90% noncondensing
Nonoperating humidityNonoperating humidity
Meantime between failures (MTBF)9.78 years (85,787 hours)
FCC classificationClass A
RoHS complianceRoHS 2
FIPS 140-2Level 2 (Junos 15.1X49-D100)
