Juniper SRX345-SYS-JB-2AC

Juniper SRX345-SYS-JB-2AC

Thiết bị Firewall Juniper SRX345-SYS-JB-2AC: SRX345 Services Gateway includes hardware (16GbE, 4x MPIM slots,4G RAM, 8G Flash, dual AC power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)

Danh mục:

Mô tả

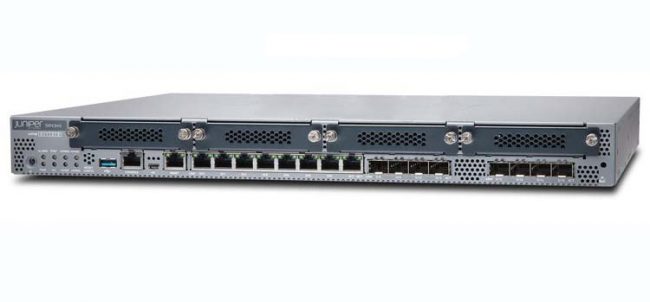

Thiết bị Firewall Juniper SRX345-SYS-JB-2AC

Model SRX345
Connectivity
Total onboard ports 16x 1GbE
Onboard RJ-45 ports 8x 1GbE
Onboard small form-factor pluggable
(SFP) transceiver ports
8x 1GbE
MACsec-capable ports 16x 1GbE
Out-of-band (OOB) management ports 1x 1GbE
Mini PIM (WAN) slots 4
Console (RJ-45 + miniUSB) 1
USB 3.0 ports (type A) 1
Optonal PoE+ ports 0
Memory and Storage
System memory (RAM) 4 GB
Storage (flash) 8 GB
SSD slots 1
Dimensions and Power
Form factor 1 U
Size (WxHxD) 17.36 x 1.72 x 18.7 in.
(44.09 x 4.36 x 47.5 cm)
Weight (device and PSU) 11.02 lb (5 kg)
Redundant PSU Yes
Power supply AC (internal)
Maximum PoE power N/A
Average power consumpton 122 W
Airflow/cooling Front to back
Performance and Scale
Routing with packet mode (64 B packet size) in Kpps 750
Routing with packet mode (1,518 B packet size in Mbps 5,500
Stateful firewall (64 B packet size) in Kpps 550
Stateful firewall (1,518 B packet size) in Mbps 5,000
IPsec VPN (1,400 B packet size) in Mbps 800
Application visibility and control in Mbps 1,700
Recommended IPS in Mbps 600
Next-generation firewall in Mbps 300
Route table size (RIB/FIB) (IPv4 or IPv6) 1 million/600,000
Maximum concurrent sessions (IPv4 or IPv6) 357,000
Maximum security policies 4,000
Connectons per second 15,000
NAT rules 2,000
MAC table size 15,000
IPsec VPN tunnels 2,048
Number of remote access uses 250
GRE tunnels 1,024
Maximum number of security zones 64
Maximum number of virtual routers 128
Maximum number of VLANs 3,0000
AppID sessions 64,000
IPS sessions 64,000
URLF sessions 64,000
