Juniper SRX4600-SYS-JB-AC

Juniper SRX4600-SYS-JB-AC

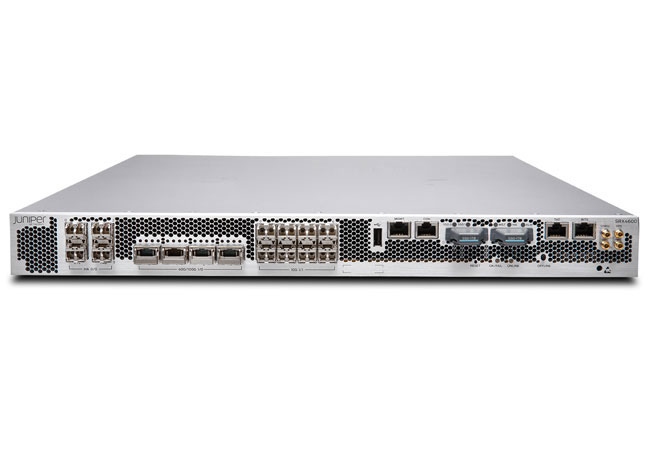

Firewall Juniper SRX4600-SYS-JB-AC: SRX4600 Services Gateway includes hardware (4x100GbE, 8x10GbE, two AC power supply units, five fan trays, cables, and rack mount kit) and Junos Software Base (Firewall, NAT, IPsec, routing, MPLS)

Danh mục:

Mô tả

Thiết bị Firewall Juniper SRX4600-SYS-JB-AC

Product NameSRX4600-SYS-JB-AC
Total onboard I/O ports8 10GbE (SFP+)
4x40GbE/100GbE (QSFP28)
Out-of-Band (OOB) management portsRJ-45 (1 Gbps)
Dedicated high availability (HA) ports2x10GbE (SFP+) Control
2x10GbE (SFP+) Data
ConsoleRJ-45 (RS232)
USB 2.0 ports (Type A)1
Memory and Storage
System memory (RAM)256 GB
Secondary storage (SSD)2x 1 TB M.2 SSD Formatted as 960 GB
Dimensions and Power
Form factor1 U
Size (WxHxD)17.4 x 1.7 x 26.5 in (44.19 x 4.32 x 67.31 cm)
With AC PEMs: 17.4 x 1.7 x 27.29 in (44.19 x 4.32 x 69.32 cm)
With DC PEMs: 17.4 x 1.7 x 29.20 in (44.19 x 4.32 x 74.17 cm)
Weight (system and 2 power entry modules)With AC PEMs: 38 lb (17.24 kg)
Shipping weight: 45.47 lb (20.62 kg)
With DC PEMs: 40 lb (18.14 kg)
Shipping weight: 47.47 lb (21.53 kg)
Redundant PSU1+1
Power supply2x 1600 W AC-DC PSU redundant
2x 1100 W DC-DC PSU redundant
Average power consumption650 W
Average heat dissipation2218 BTU/hour
Maximum current consumption12 A (for 110 V AC power)
6 A (for 220 V AC power)
24 A (for -48 V DC power)
Precision Time Protocol Timing Ports
Time of day – RS-232 (EIA-23)1xRJ-45
BITS clock1xRJ-48
10-MHz timing connector (GNSS)1xInput (COAX)
1xOutput (COAX)
Pulse per second connection (1-PPS)1xInput (COAX)
1xOutput (COAX)
Environmental and Regulatory Compliance
Acoustic noise level69 dBA at normal fan speed,
87 dBA at full fan speed
Airflow/coolingFront to back
Operating temperature32° to 104° F (0° to 40° C)
Operating humidity5% to 90% noncondensing
Meantime between failures (MTBF)112,000 hours
FCC classificationClass A
RoHS complianceRoHS 2
NEBS complianceDesigned for NEBS Level 3
Routing/firewall (64 B packet size) throughput Gbps317 Gbps
Routing/firewall (IMIX packet size) throughput Gbps375 Gbps
Routing/firewall (1518 B packet size) throughput Gbps395 Gbps
IPsec VPN (IMIX packet size) Gbps316 Gbps
IPsec VPN (1400 B packet size) Gbps338 Gbps
Application security performance in Gbps380 Gbps
Recommended IPS in Gbps420 Gbps
Next-generation firewall in Gbps420 Gbps
Connections per second (CPS)500,000
Maximum security policies80,000
Maximum concurrent sessions (IPv4 or IPv6)60 million
Route table size (RIB/FIB) (IPv4 or IPv6)4 million/2 million
