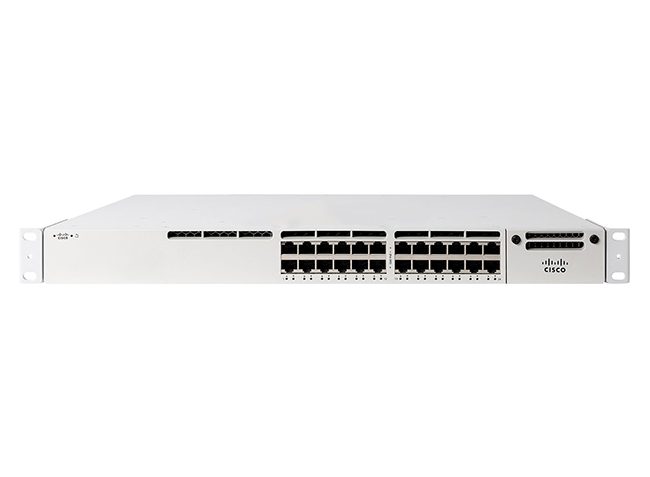

Meraki MS390-24U-HW

Thiết bị mạng Switch Cisco Meraki MS390-24U-HW

Mã sản phẩm	MS390-24U-HW
Interface	• 24 × 100/1/2.5/5/10G Ethernet (RJ45) • 4/8 × 10G SFP+ uplink modules • 2 × 40G QSFP uplink modules • Auto-negotiation and crossover detection • 2 × dedicated stacking ports
Switching Capacity	208 Gbps
Stacking Bandwidth	480 Gbps
Forwarding rate	154.76 Mpps
Physical Dimensions (H x W x D)	1.73” x 17.5” x 19.2” (4.4 x 44.5 x 44.8cm)
Weight	16.63 lb (7.54 kg)
Idle / Full Load Power	85.4 / 990.3 W
Available PoE W/ Primary PS	830W
Power Supply Configuration	Hot-swappable
Management	– Managed via the Web with the Meraki cloud management platform – Integrated with Meraki Wireless and complete portfolio of IT products and solutions – Zero-touch remote provisioning (no staging needed) – Detailed historical per-port and per-client usage statistics – Operating system, device, and hostname fingerprinting – SNMP and SYSLOG support for integration with other network management solutions – Automatic firmware upgrades with scheduling control
Remote Diagnostics	Email, SMS and Mobile push notification alerts 1 Ping, traceroute, cable testing, and link failure detection with alerting Remote packet capture Dynamic and interactive network discovery and topology Combined event and configuration change logs with instant search
Stacking	– Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet Switching Capabilities	– 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) – 802.1Q VLAN and trunking support for up to 4,094 VLANs – 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) – STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD – Broadcast storm control – 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) – 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches – Port mirroring – IGMP snooping for multicast filtering – MAC forwarding entries: 32K
Layer 3 capabilities	– Static routing, OSFPv2 – Multicast routing – Warm Spare (VRRP) 2 – DHCP Relay, DHCP Server
Mounting	– 1U rack-mountable – 2/4-post mounting options available
Performance	– Switching capacity: 154.76 Mpps – Forwarding rate: 155 Mpps with standard packet size – Jumbo frame (9600 byte Ethernet frame) – Flow control
Power	– Power input: 100-240V~, 50-60Hz – Power consumption: 85.4 / 990.3 W
MTBF	238,410
Environment	Operating temp: 0°C to 45°C, Humidity: 5 to 95% non-condensing
Warranty	Full lifetime hardware warranty with next-day advanced replacement included

Mô tả
